Adjustable Die 65.400 - V150-400 mm
Adjustable Die 65.400 - V150-400 mm supports adjustable roller positioning across 150 - 400 mm with max. 60° angle, 25 mm roller radius and 6000 kN/m max. at...
Model: 65.400
Product type: Die
Compatible tooling system: Adjustable Dies
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: Alloy tool steel selected for the approved duty
- Opening range: Adjustable die opening configured for the bending program
- Support surfaces: Precision-machined locating and load-bearing faces
- Alignment: Matched blocks for parallel installation and repeat setup
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Adjustable Die
- Tooling range: Adjustable Dies

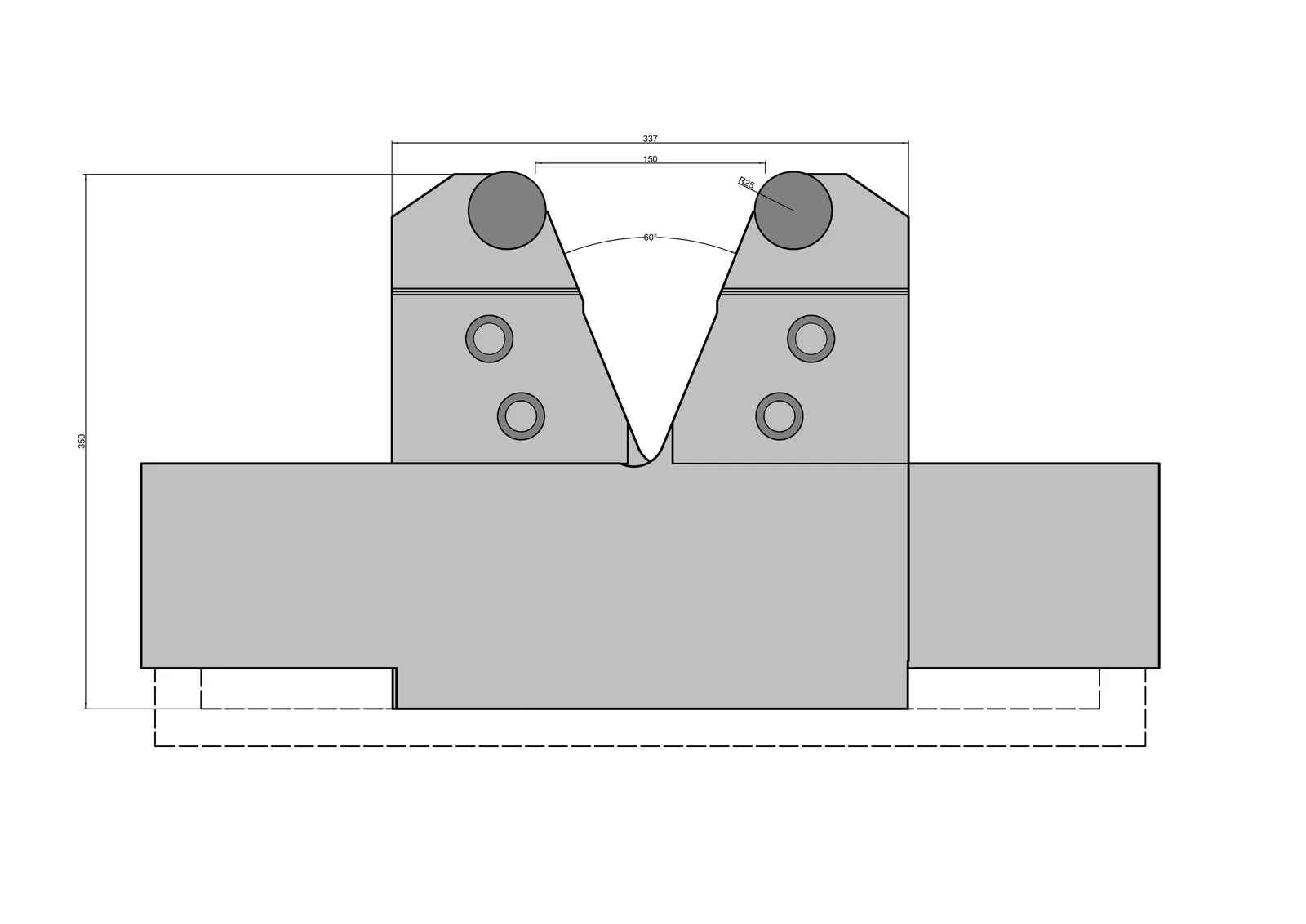

- Profile geometry: Angle max. 60° · Opening 150 - 400 mm · Roller radius 25 mm
- Published load: 6000 kN/m max. at 90°
Product specifications
- Tooling System
- Adjustable Dies
- Product Family
- Adjustable Die
- Compatible System
- Adjustable Dies
- Angle
- max. 60°
- Die opening
- 150 - 400 mm
- Roller Radius
- 25 mm
- Load Capacity
- 6000 kN/m max. at 90°
DIE LENGTHS & SECTIONALIZATION
Tool family: DIES.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
