COVO DIE
AMADA Die 22.914
COVO Amada system Die AMADA Die 22.914 (model 22.914) for press brake tooling and sheet metal bending. Key specifications include Angle: 86°, Height: 60 mm...
Model: 22.914
Product type: Die
Compatible tooling system: Amada system
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: 42 CrMo
- Working radii: Hardened to the COVO HRC 58–60 process range where specified
- Surface finish: Precision-ground working and locating faces
- Fit & repeatability: Matched for parallel installation and repeat replacement
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Die
- Tooling system: COVO-System Amada
- Material: 42 CrMo

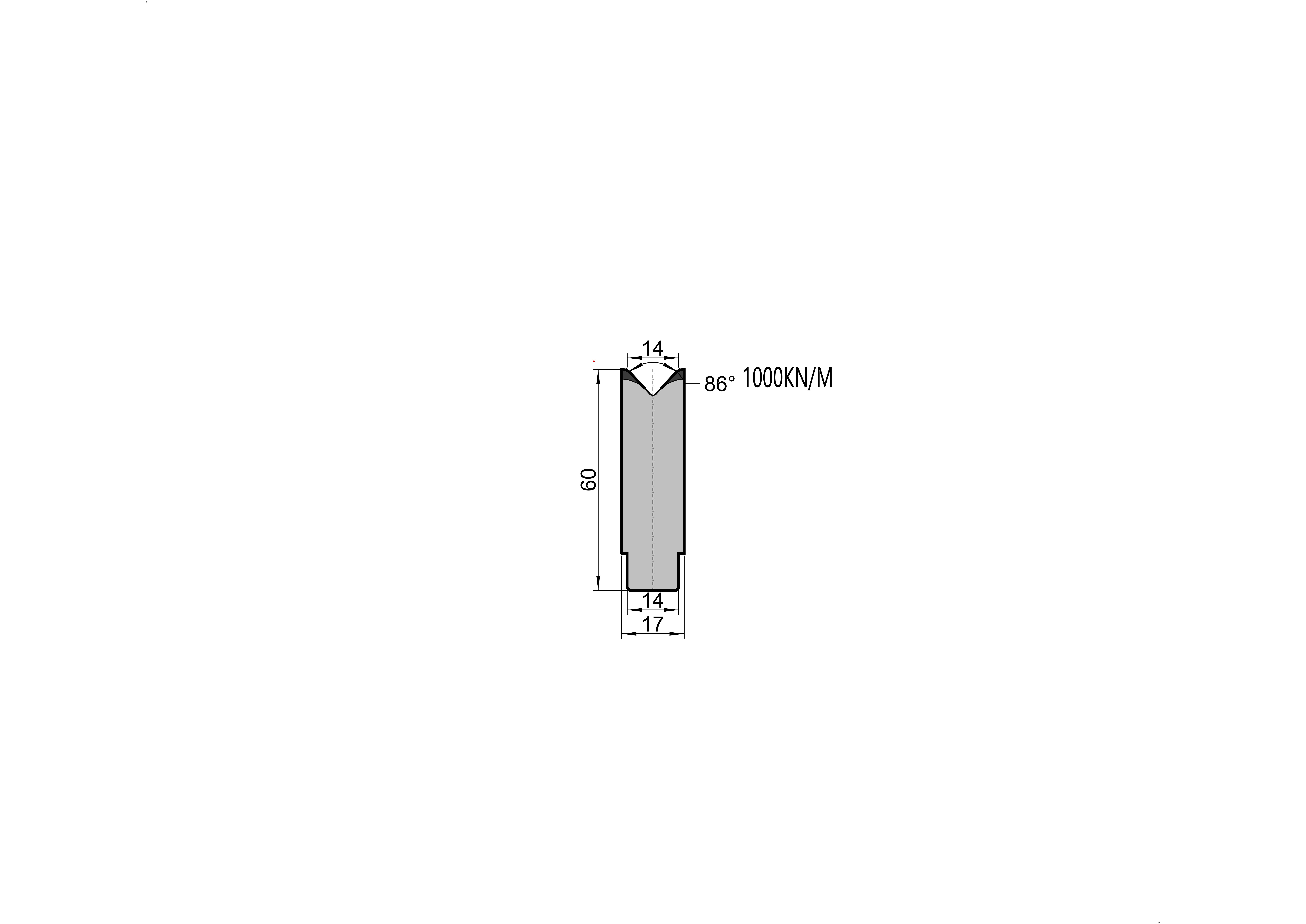

- Profile geometry: Angle 86° · Opening 14 mm · Intake radius 2,5 mm · Height 60 mm
- Published load: 1000 kN/m max.
Product specifications
- Tooling System
- COVO-System Amada
- Angle
- 86°
- Die opening V
- 14 mm
- Intake radius R
- 2,5 mm
- Height
- 60 mm
- Load
- 1000 kN/m max.
- Material
- 42 CrMo
DIE LENGTHS & SECTIONALIZATION
Tool family: DIES.
Standard one-piece and sectionalized supply options for this die family are shown below. Final stock and segment layout are confirmed on the quotation.
- Standard full length: 835 mm — One-piece die for continuous bending lengths
- Short full length: 415 mm — One-piece die for shorter setups and easier handling
800 mm sectionalized
Diagram: Sectional layout schematic — not to scale.
Segment count: 9.
Segment breakdown: 10 mm + 15 mm + 15 mm + 20 mm + 40 mm + 50 mm + 100 mm + 150 mm + 400 mm.
9 segments; the sectionalized die is supplied as a matched complete set.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
