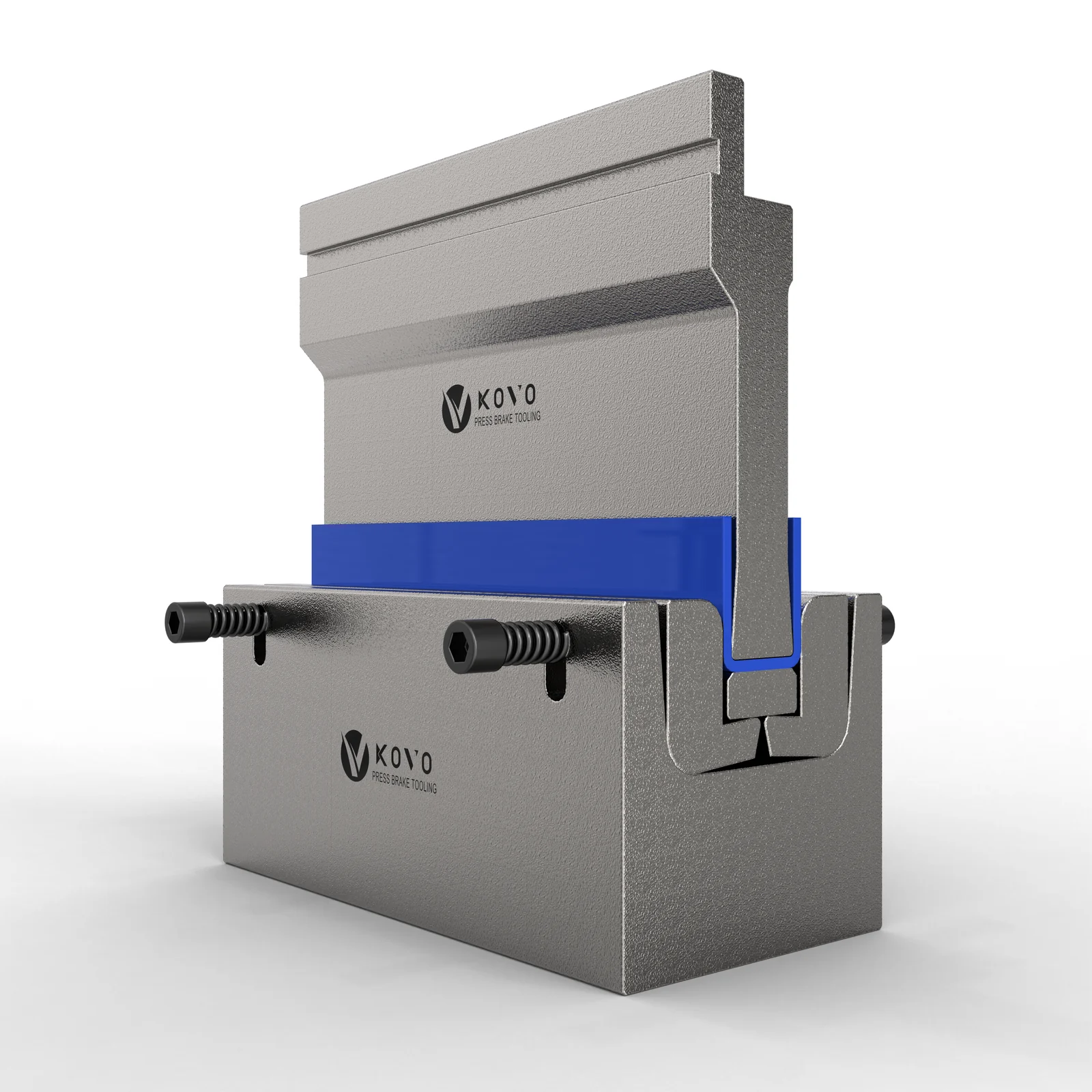

One-Hit U-Channel Forming Tool
One-Hit U-Channel Forming Tool is forming tool for Forming Tools. Key specifications include Tooling System: Forming Tools, Forming Operation: U-Channel...
Model: FT-008
Product type: Forming Tool
Compatible tooling system: Forming Tools
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: Material and heat treatment matched to the forming duty
- Profile engineering: Upper and lower profiles developed from the approved part drawing
- Working surfaces: Critical forming faces finished to the required profile accuracy
- Matched set: Tool members aligned for parallel installation and repeat production
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Forming Tool
- Tooling range: Forming Tools
- Profile geometry: Operation U-Channel Forming
Product specifications
- Tooling System
- Forming Tools
- Forming Operation
- U-Channel Forming
TOOL LENGTHS & SECTIONALIZATION
Tool family: FORMING TOOLS.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
