COVO PRESS BRAKE TOOLING

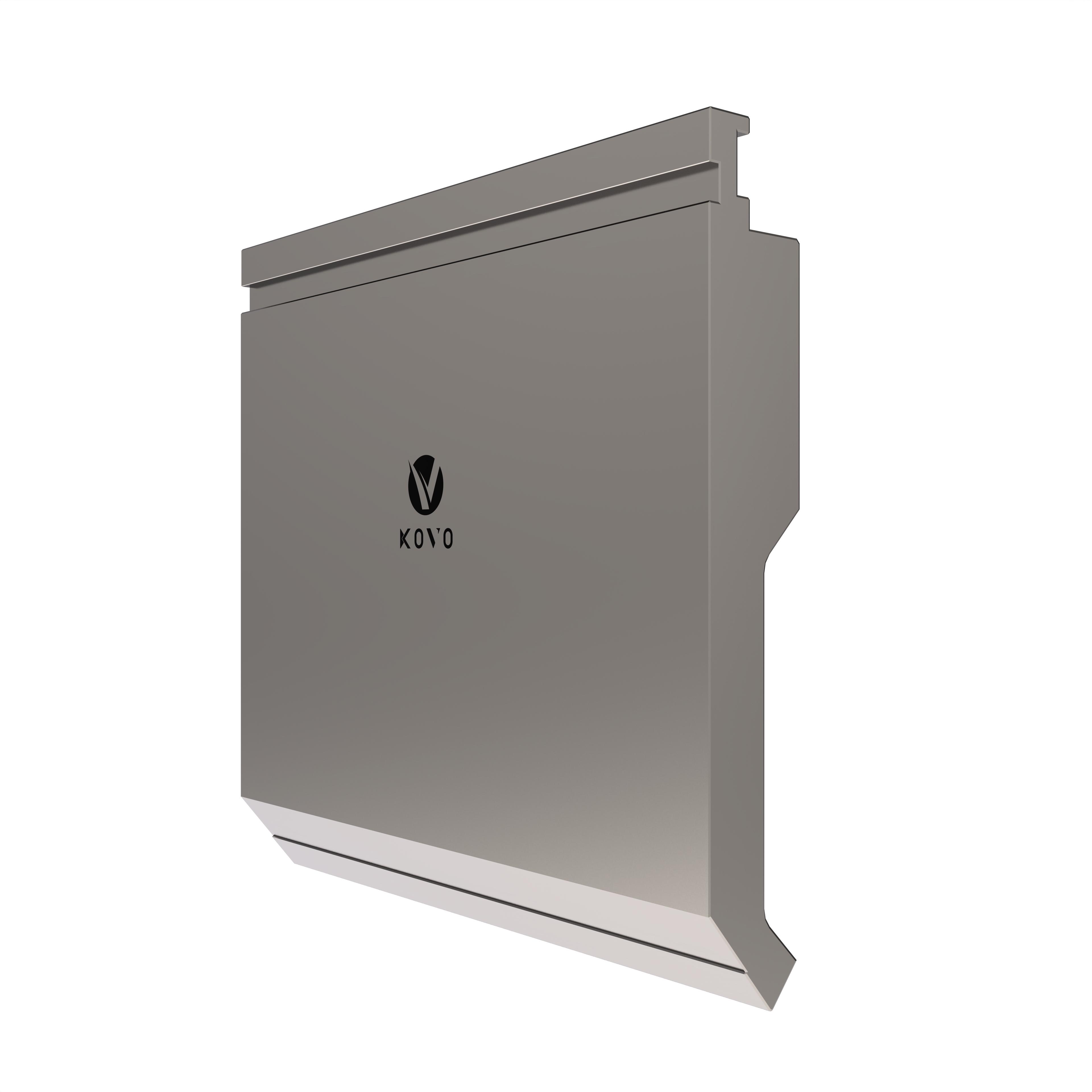

WILA Punch 14.06

Tooling system COVO-System Wila type II; Angle 80°; Radius R 1,0 mm; Height 175 mm; Load 800 kN/m max.; Material 42 CrMo, tempered to 800-850N/mm²

Model: 14.06

Product type: Punch

Compatible tooling system: WILA

Product specifications

Tooling system
COVO-System Wila type II
Angle
80°
Radius
R 1,0 mm
Height
175 mm
Load
800 kN/m max.
Material
42 CrMo, tempered to 800-850N/mm²

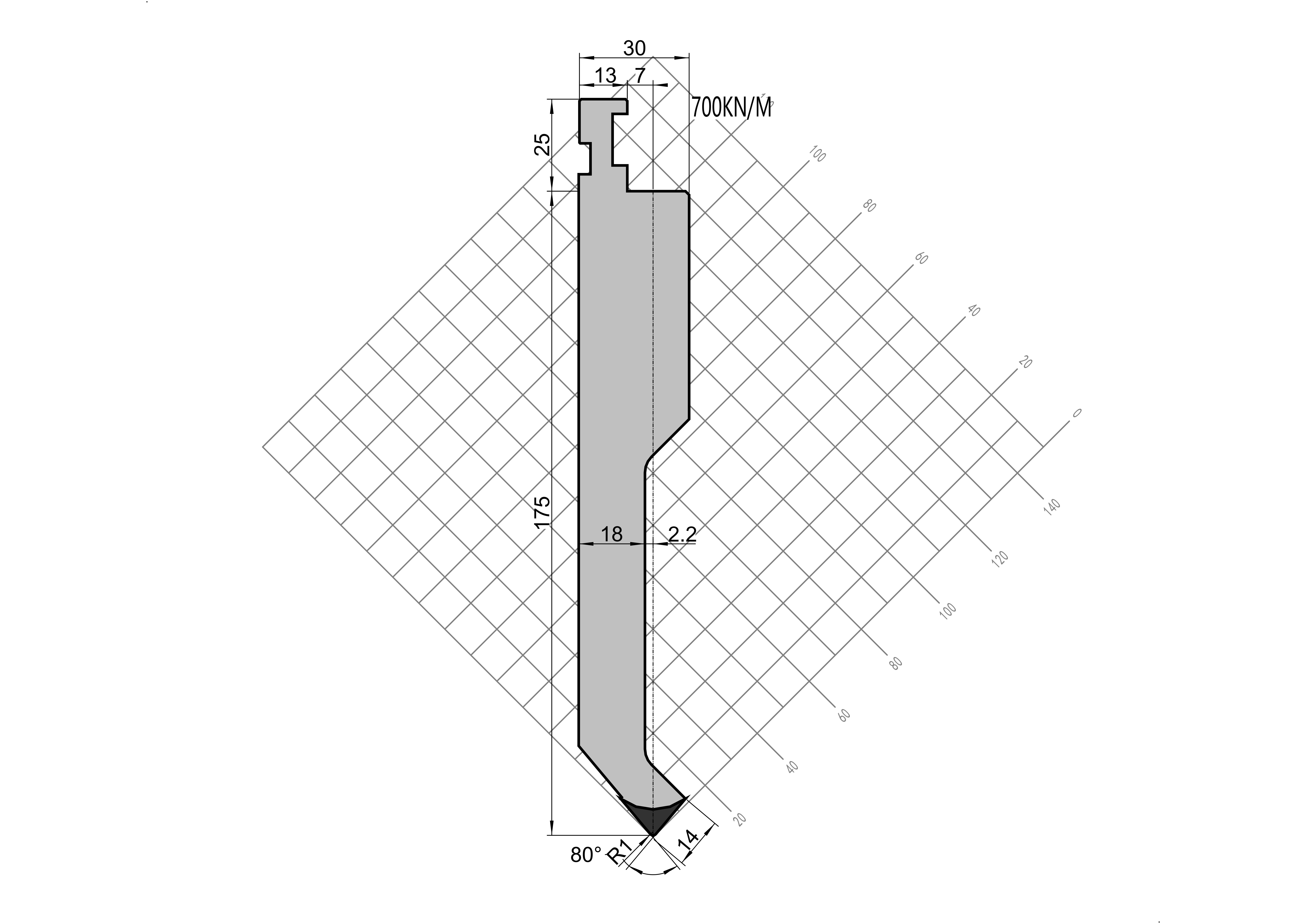

WILA Punch 14.06 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
