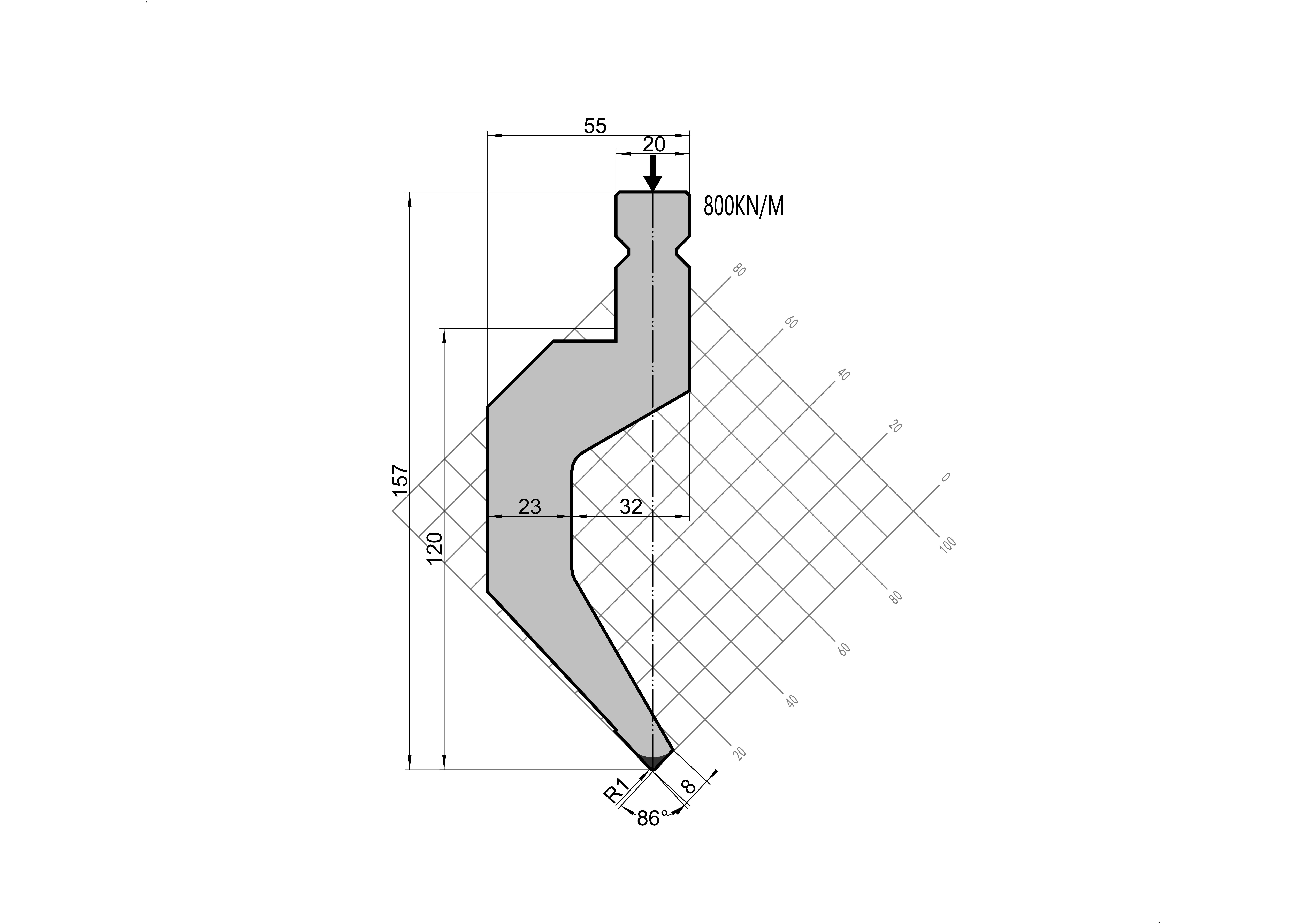

TRUMPF Punch 15.37 - 86° H120 mm
Model: 15.37
Product Details
Manufacturing standard
- Material: 42 CrMo
- Working radii: COVO HRC 58–60 process range where specified.
- Precision-ground working and locating surfaces.
- Matched locating faces for parallel installation and repeat setup.
- Model identification and traceability marking as specified.
Clamping interface
Your selected profile
- Angle
- 86°
- Tip radius
- R 1,0 mm
- Height
- 120 mm
- Catalog load
- 800 kN/m max.
- Material
- 42 CrMo
Tool lengths & sectional configurations · Punches
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.
One-piece tool
Short sections
Sectional configuration
Plan the working length, clearance and left/right end arrangement together. The illustrations explain the setup; they do not define the selected punch profile or segment list.
Final configuration review
- Press brake brand and machine model
- Required working or bend length
- Material grade and sheet thickness
- Finished profile or part drawing
