COVO PRESS BRAKE TOOLING

TRUMPF Punch 15.45 - 28° H140 mm

COVO TRUMPF Punch TRUMPF Punch 15.45 - 28° H140 mm (model 15.45) for press brake tooling and sheet metal bending. Key specifications include Angle: 28°...

Model: 15.45

Product type: Punch

Compatible tooling system: TRUMPF

Product specifications

Angle
28°
Radius
R 1,0 mm
Height
140 mm
Load
400 kN/m max.
Material
42 CrMo

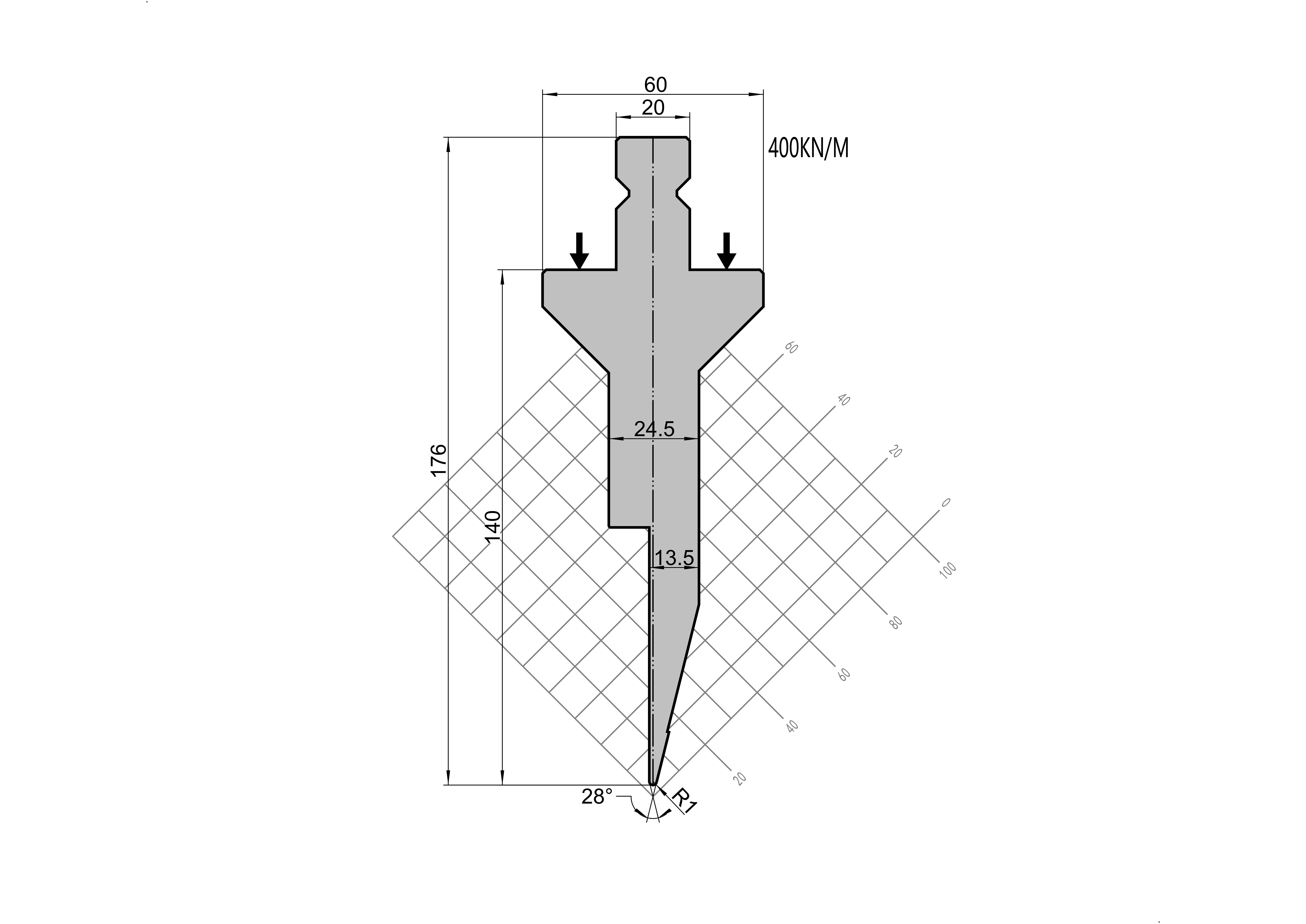

TRUMPF Punch 15.45 - 28° H140 mm press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
