COVO PRESS BRAKE TOOLING

WILA Punch 19.021

Tooling system COVO-System Wila type I/Trumpf/LVD; Angle 28°; Radius R 1,0 mm; Height 163 mm; Load 700 kN/m max.; Material 42 CrMo

Model: 19.021

Product type: Punch

Compatible tooling system: WILA

Product specifications

Tooling system
COVO-System Wila type I/Trumpf/LVD
Angle
28°
Radius
R 1,0 mm
Height
163 mm
Load
700 kN/m max.
Material
42 CrMo

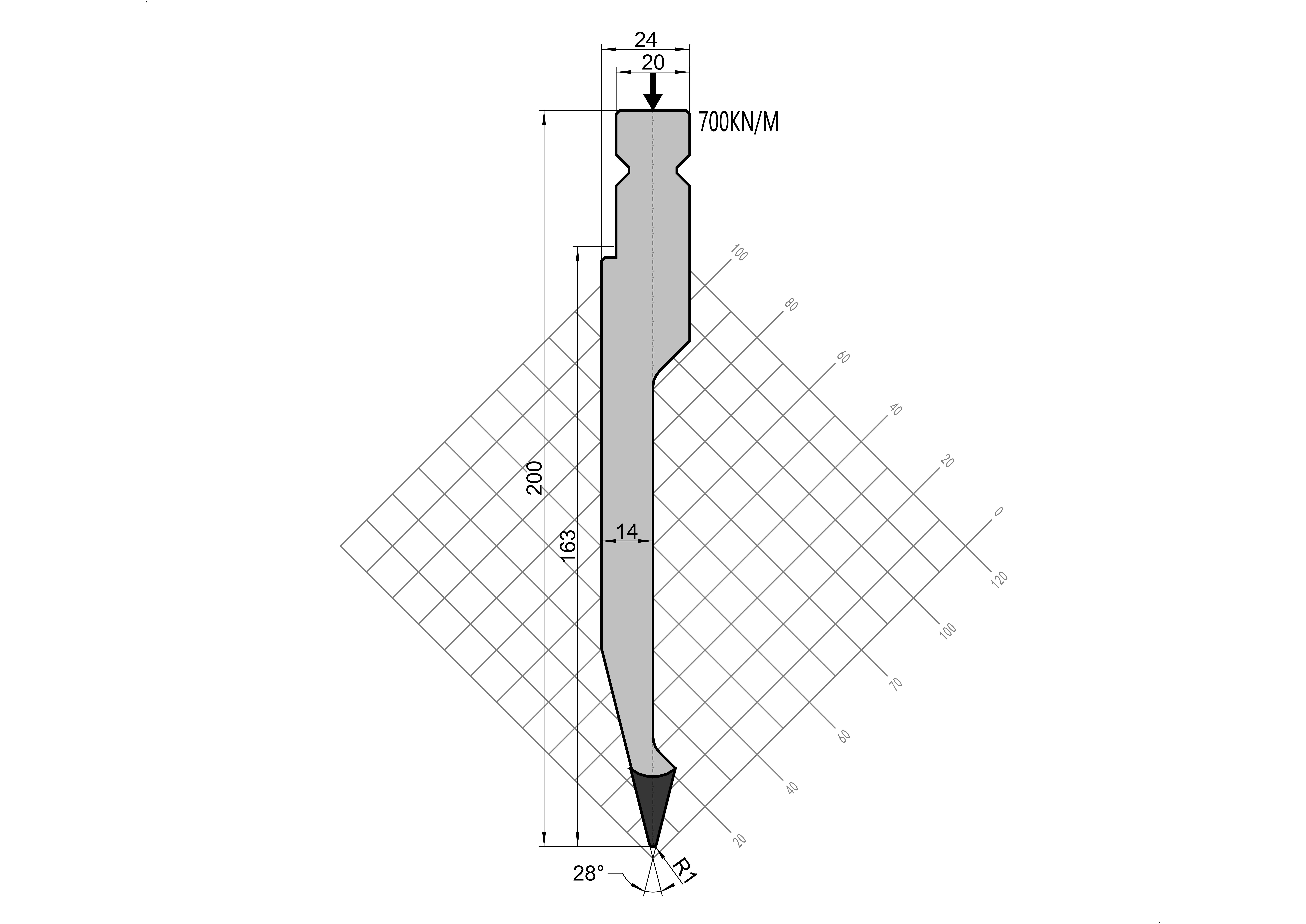

WILA Punch 19.021 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
