TRUMPF Die 25.8 - 84° V=10 mm

COVO TRUMPF Die TRUMPF Die 25.8 - 84° V=10 mm (model 25.8) for press brake tooling and sheet metal bending. Key specifications include Angle: 84°, Height: 100...

Model: 25.8

Product type: Die

Compatible tooling system: TRUMPF

Product specifications

Angle
84°
Die Opening
V = 10 mm
Height
100 mm
Load
1000 kN/m max.
Material
42CrMo

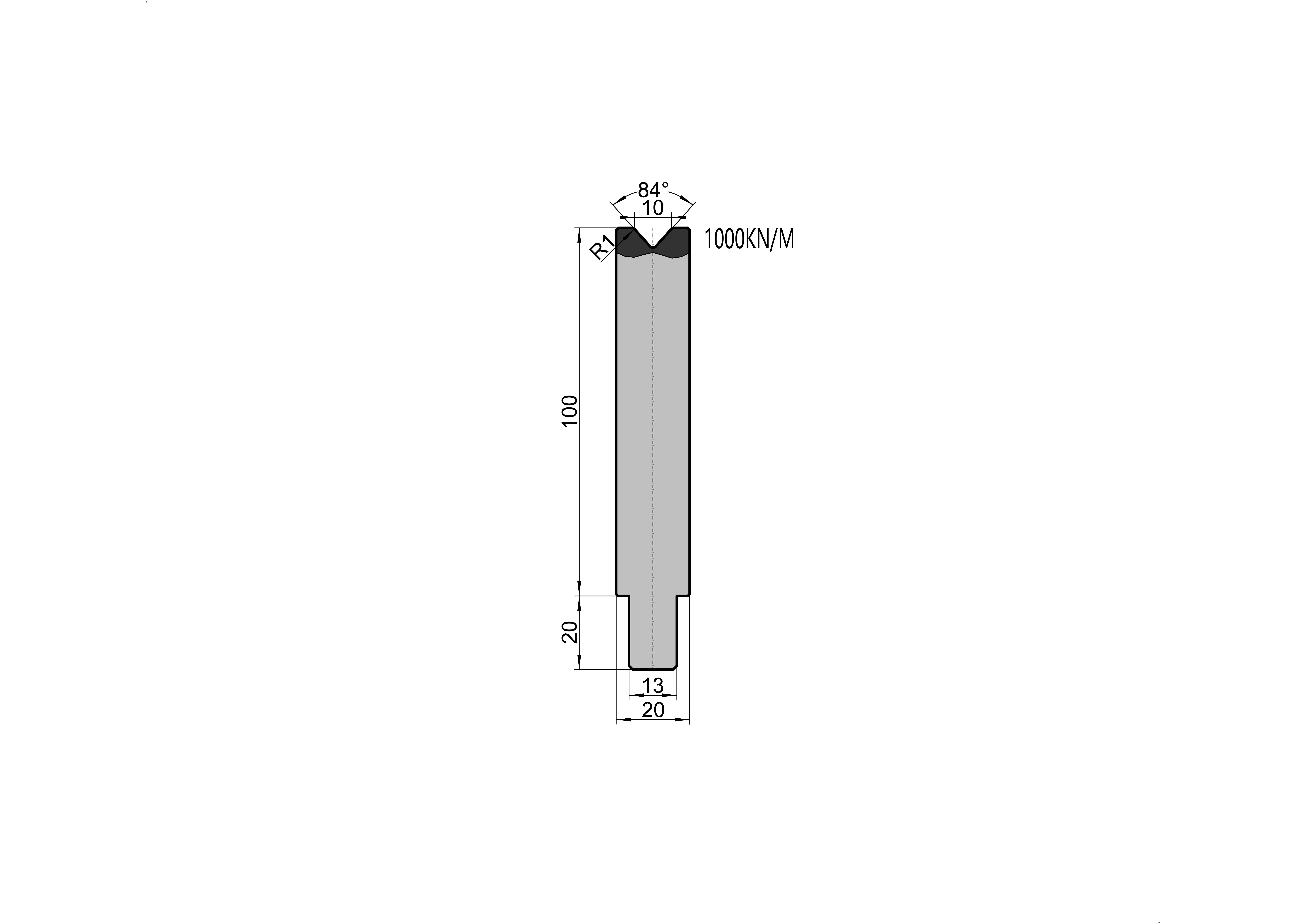

TRUMPF Die 25.8 - 84° V=10 mm press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
