TRUMPF Die 25.901 - 30° V=6 mm

Model: 25.901

Product Details

Manufacturing standard

Clamping interface

COVO · TRUMPF · Dies · Clamping interface
System illustration. Dimensions refer to the pictured interface examples, not to the selected model. Confirm the upper clamp and lower holder against your machine drawing.

Your selected profile

Angle
30°
Die Opening
V = 6 mm
Height
150 mm
Catalog load
400 kN/m max.
Material
42 CrMo
TRUMPF Die 25.901 - 30° V=6 mm · Your selected profile

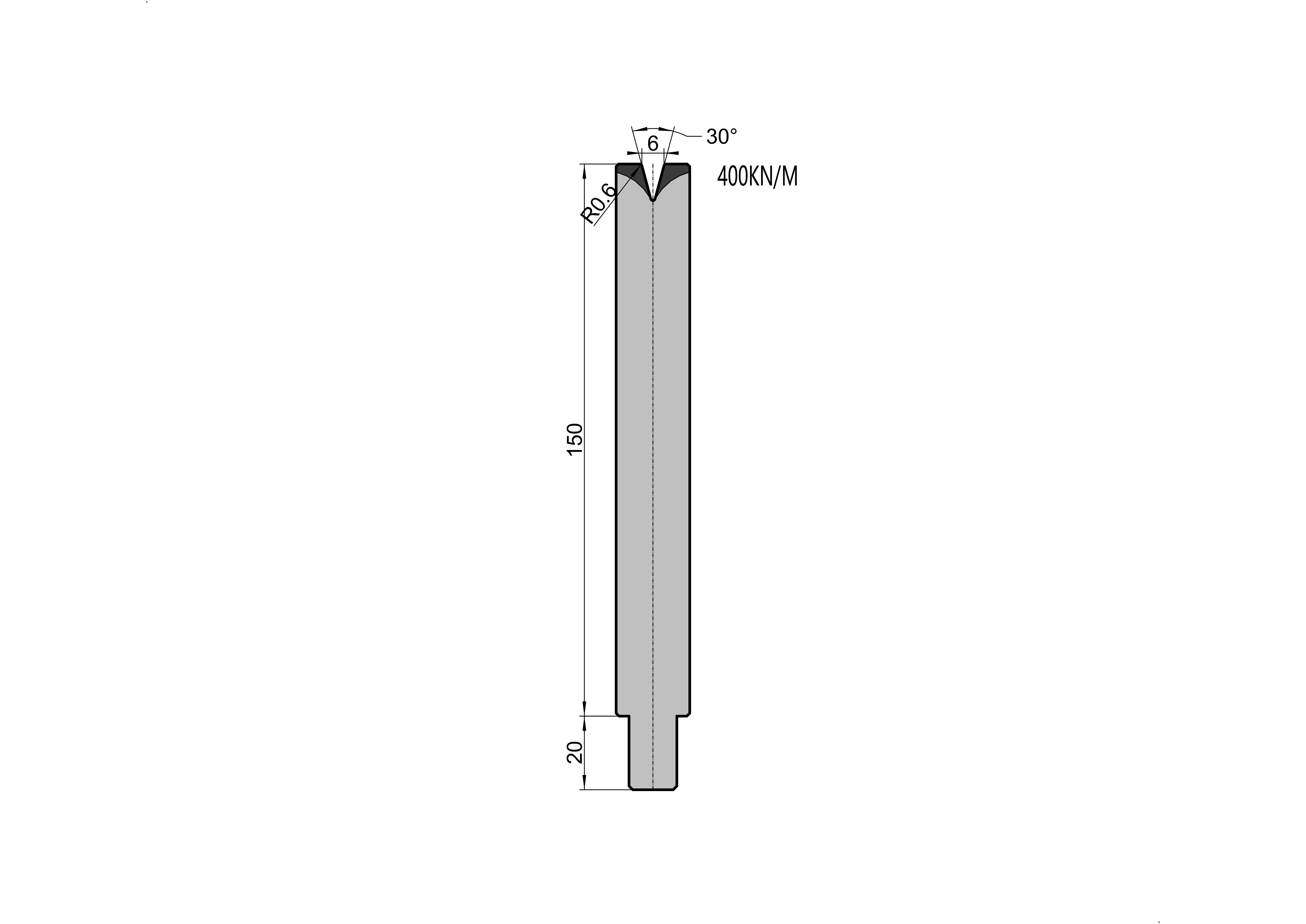

Catalog views for this model. Open the drawing to inspect the complete profile; use the approved drawing for final dimensions and allowable load.

Tool lengths & sectional configurations · Dies

Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.

One-piece tool

COVO · TRUMPF · Dies · One-piece tool
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.

Short sections

COVO · TRUMPF · Dies · Short sections
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.

Sectional configuration

Select the working length with the V opening, shoulder radius and lower holder. Keep the lower die aligned with the upper tool; confirm the segment list as a matched setup.

COVO · TRUMPF · Dies · Sectional configuration
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.
