TRUMPF Die 25.907 - 30° V=24 mm

Model: 25.907

Product Details

Manufacturing standard

Clamping interface

COVO · TRUMPF · Dies · Clamping interface
System illustration. Dimensions refer to the pictured interface examples, not to the selected model. Confirm the upper clamp and lower holder against your machine drawing.

Your selected profile

Angle
30°
Die Opening
V = 24 mm
Height
150 mm
Catalog load
650 kN/m max.
Material
42 CrMo
TRUMPF Die 25.907 - 30° V=24 mm · Your selected profile

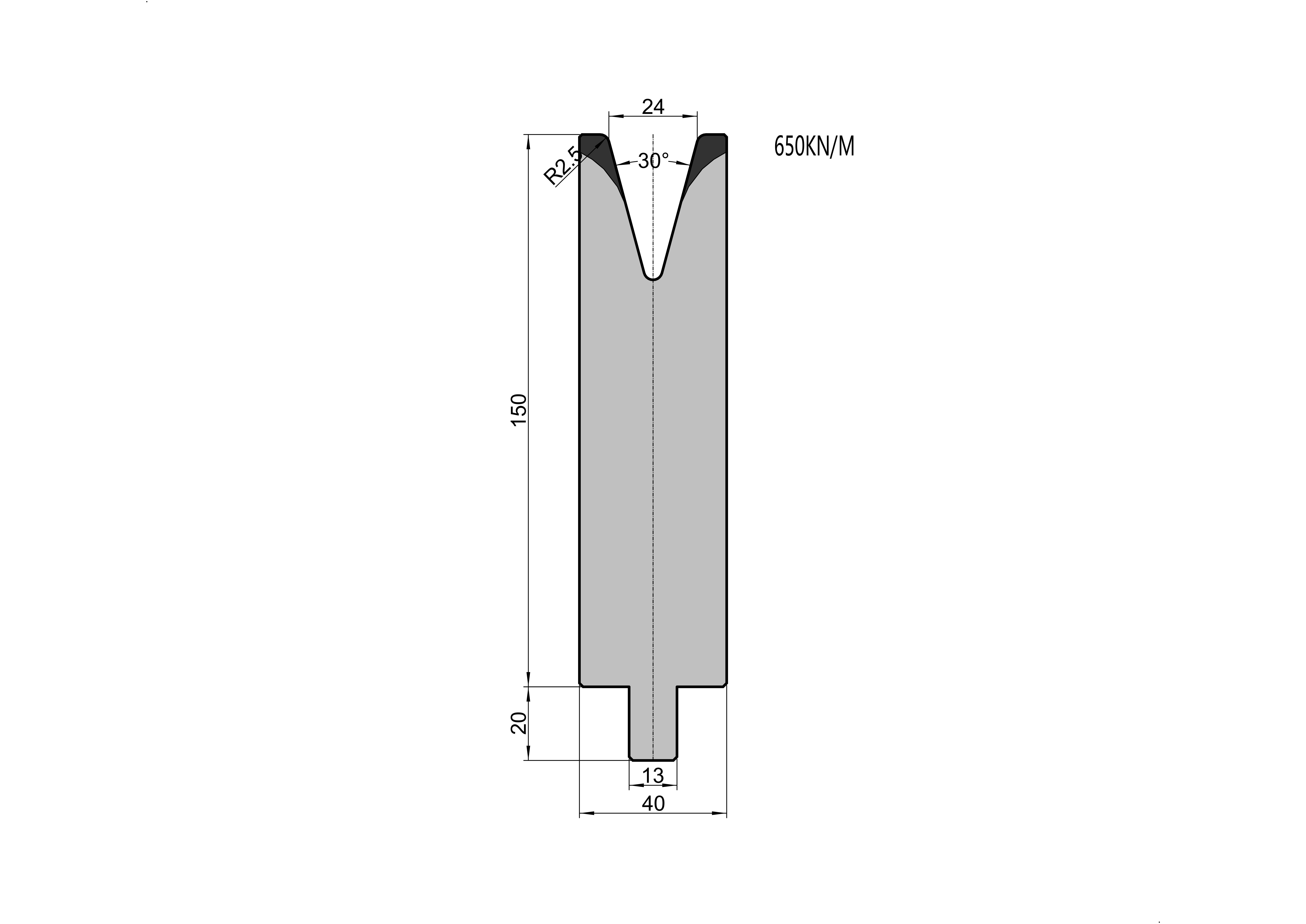

Catalog views for this model. Open the drawing to inspect the complete profile; use the approved drawing for final dimensions and allowable load.
