TRUMPF Die 53.424 - 30° V=12 mm

COVO TRUMPF Die TRUMPF Die 53.424 - 30° V=12 mm (model 53.424) for press brake tooling and sheet metal bending. Key specifications include Angle: 30°, Height...

Model: 53.424

Product type: Die

Compatible tooling system: TRUMPF

Product specifications

Angle
30°
Die Opening
V = 12 mm
Height
100 mm
Load
400 kN/m max.
Material
42 CrMo

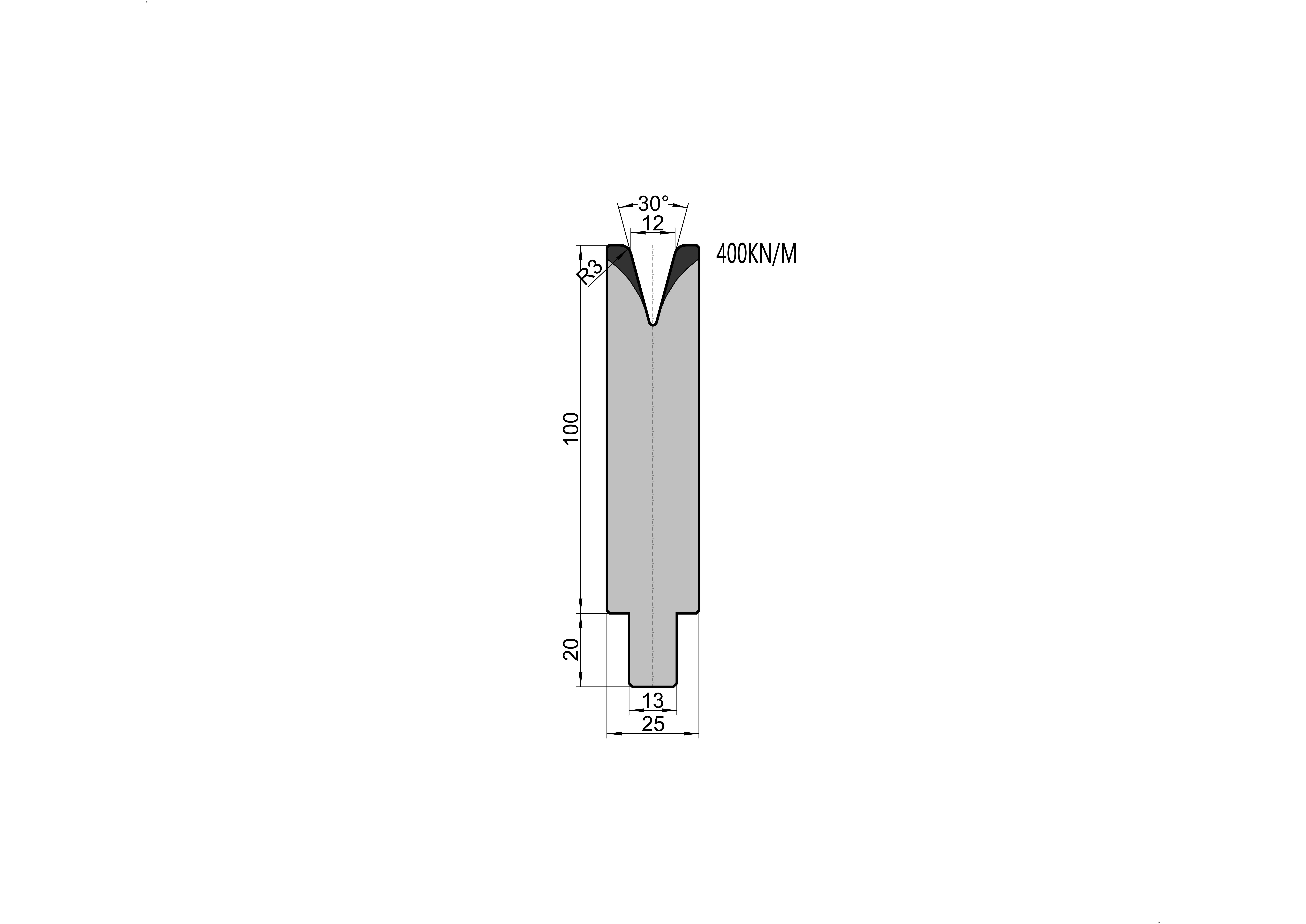

TRUMPF Die 53.424 - 30° V=12 mm press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
