COVO PRESS BRAKE TOOLING

Bystronic Punch 14.167

COVO-System Bystronic compatible punch tooling. Angle 30°. Radius R 3,0 mm. Height 175 mm. Load 1000 kN/m max..

Model: 14.167

Product type: Punch

Compatible tooling system: bystronic

Product specifications

Tooling system
COVO-System Bystronic
Angle
30°
Radius R
3,0 mm
Height
175 mm
Load
1000 kN/m max.
Material
42 CrMo

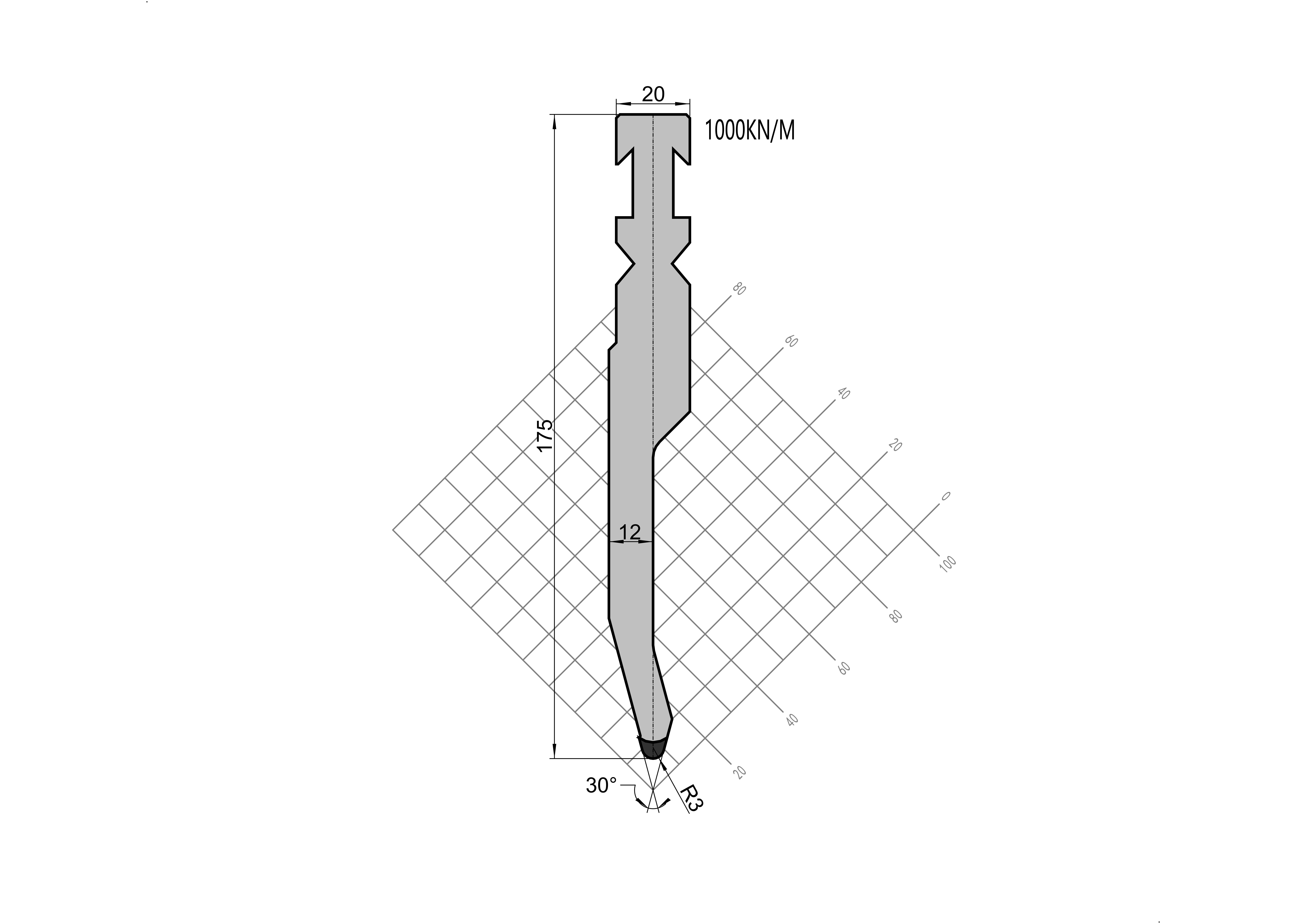

Bystronic Punch 14.167 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
