COVO PRESS BRAKE TOOLING

Bystronic Die 24.017

COVO-System Bystronic compatible die tooling. Angle 30°. Die opening V = 16 mm. Intake radius R = 2 mm. Height 55 mm.

Model: 24.017

Product type: Die

Compatible tooling system: bystronic

Product specifications

Tooling system
COVO-System Bystronic
Angle
30°
Die opening
V = 16 mm
Intake radius
R = 2 mm
Height
55 mm
Load
450 kN/m max.
Material
42 CrMo

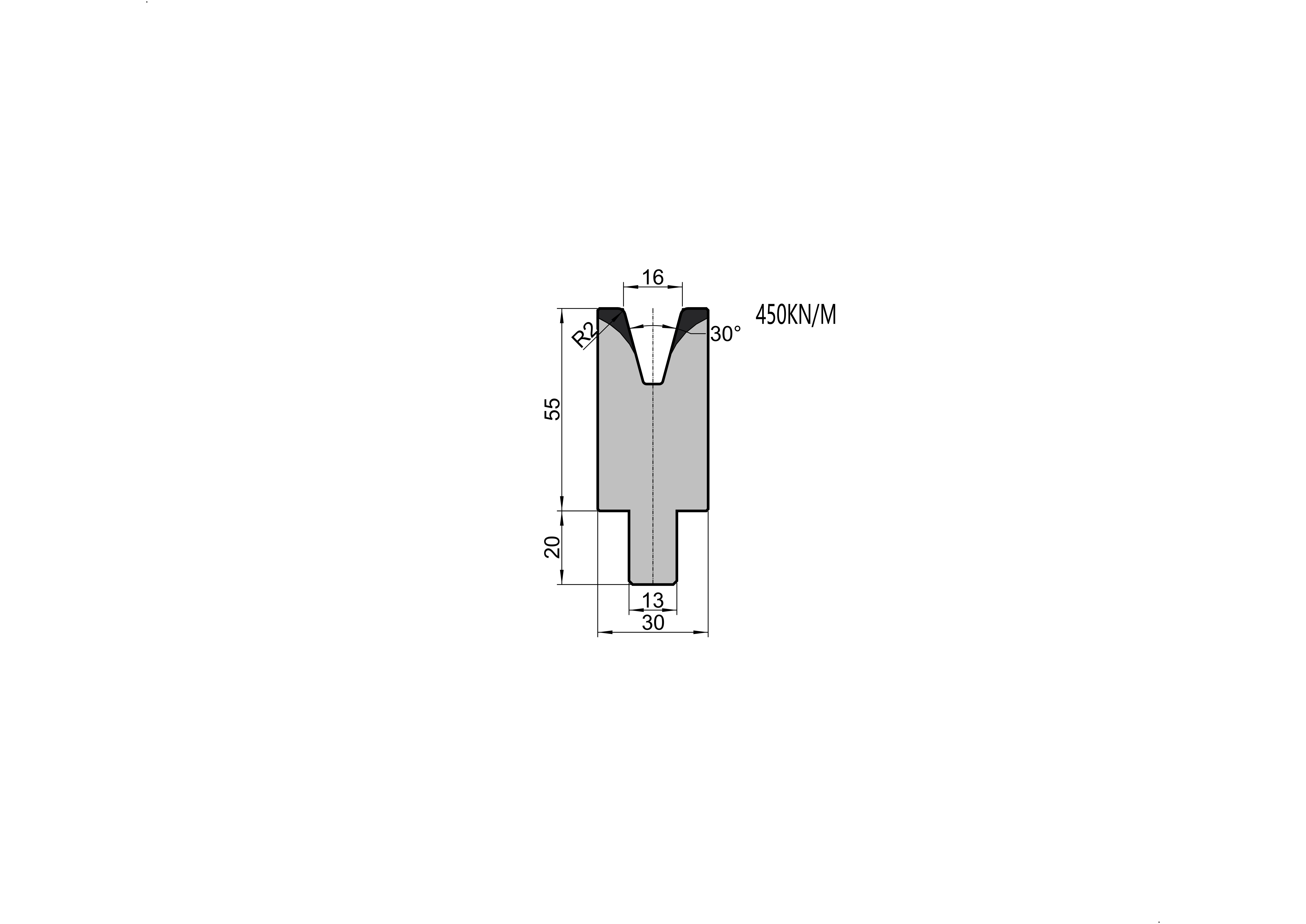

Bystronic Die 24.017 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
