COVO PRESS BRAKE TOOLING

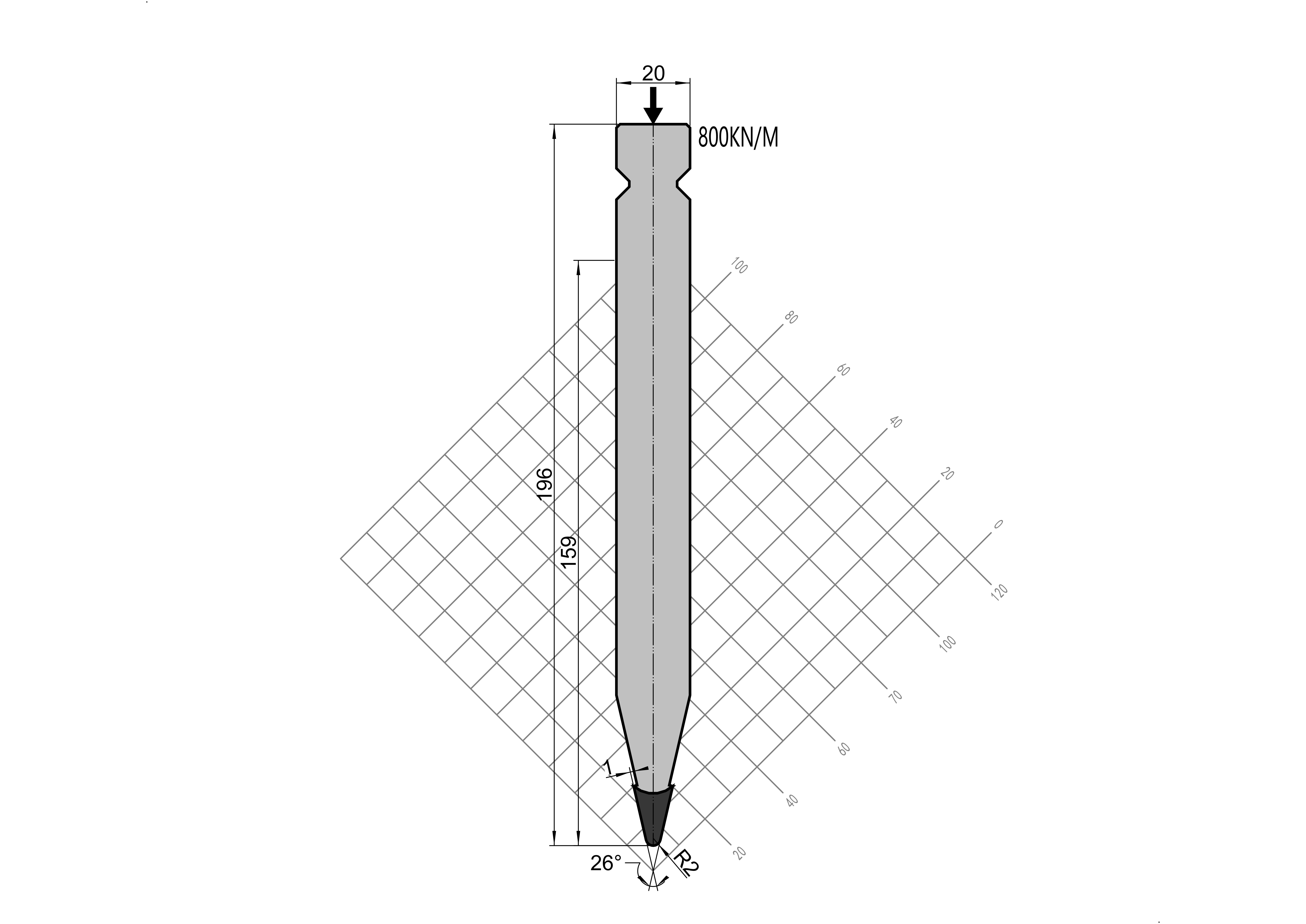

LVD Punch 16.204

COVO LVD Punch LVD Punch 16.204 (model 16.204) for press brake tooling and sheet metal bending. Key specifications include Angle: 26°, Radius: R 2,0 mm...

Model: 16.204

Product type: Punch

Compatible tooling system: LVD

Product specifications

Tooling system

COVO-System LVD type I/Trumpf/Wila

Angle

26°

Radius

R 2,0 mm

Height

159 mm

Load

800 kN/m max.

Material

42 CrMo

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
