COVO PRESS BRAKE TOOLING

LVD Die 25.995

COVO LVD Die LVD Die 25.995 (model 25.995) for press brake tooling and sheet metal bending. Key specifications include Height: 100 mm, Material: C45 tempered...

Model: 25.995

Product type: Die

Compatible tooling system: LVD

Product specifications

Tooling system

COVO-System Trumpf/ Bystronic

Note

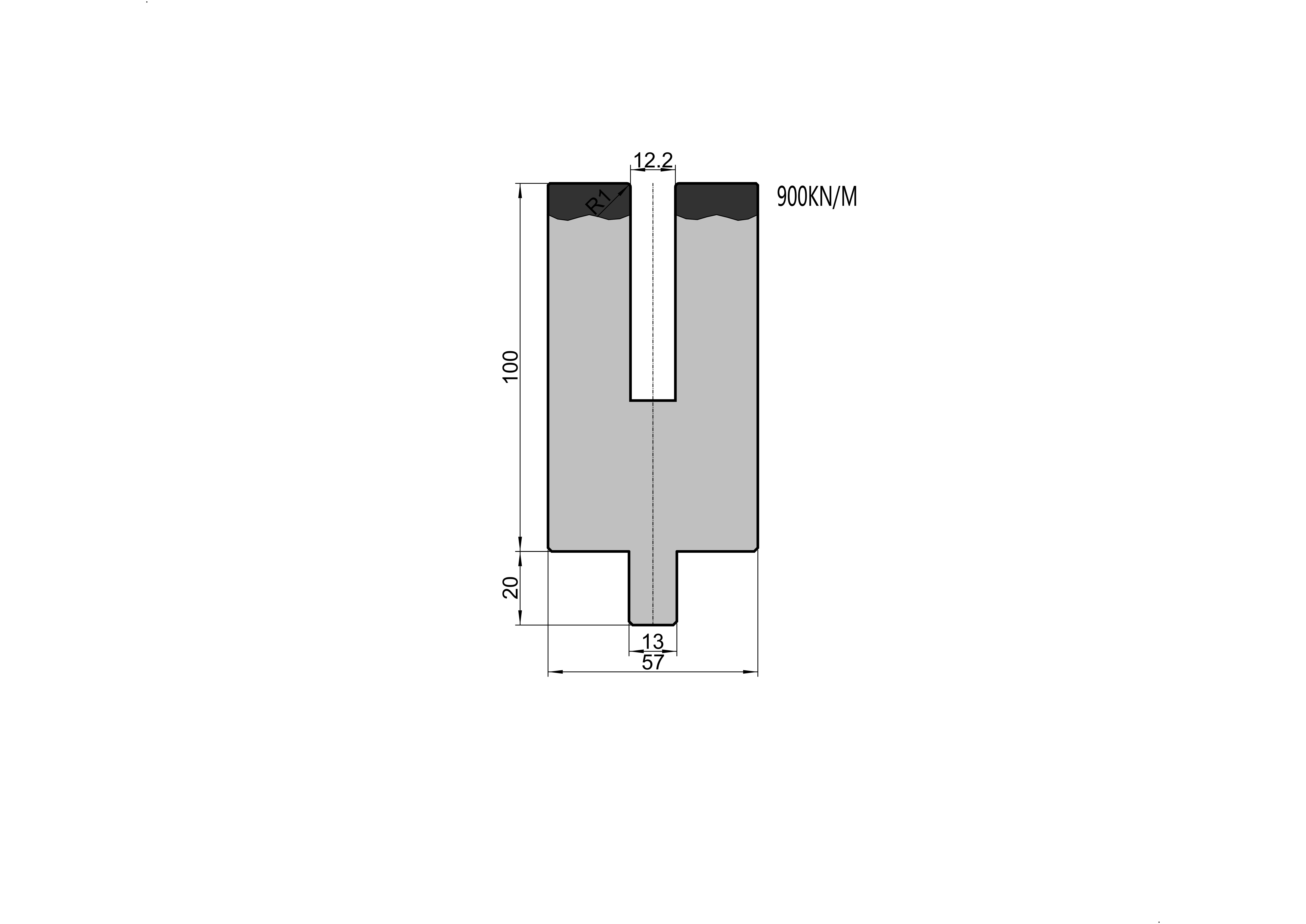

U-opening U = 12,2 mm

Intake radius

R = 1 mm

Height

100 mm

Load

500 kN/m max.

Material

C45 tempered to 800-850N/mm2

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
