COVO PRESS BRAKE TOOLING

LVD Die 26.215

COVO LVD Die LVD Die 26.215 (model 26.215) for press brake tooling and sheet metal bending. Key specifications include Angle: 78°, Height: 90 mm, Material: 42...

Model: 26.215

Product type: Die

Compatible tooling system: LVD

Product specifications

Tooling system
COVO-System LVD
Angle
78°
Die opening
V = 16 mm
Intake radius
R = 1,6 mm
Height
90 mm
Load
700 kN/m max.
Material
42 CrMo

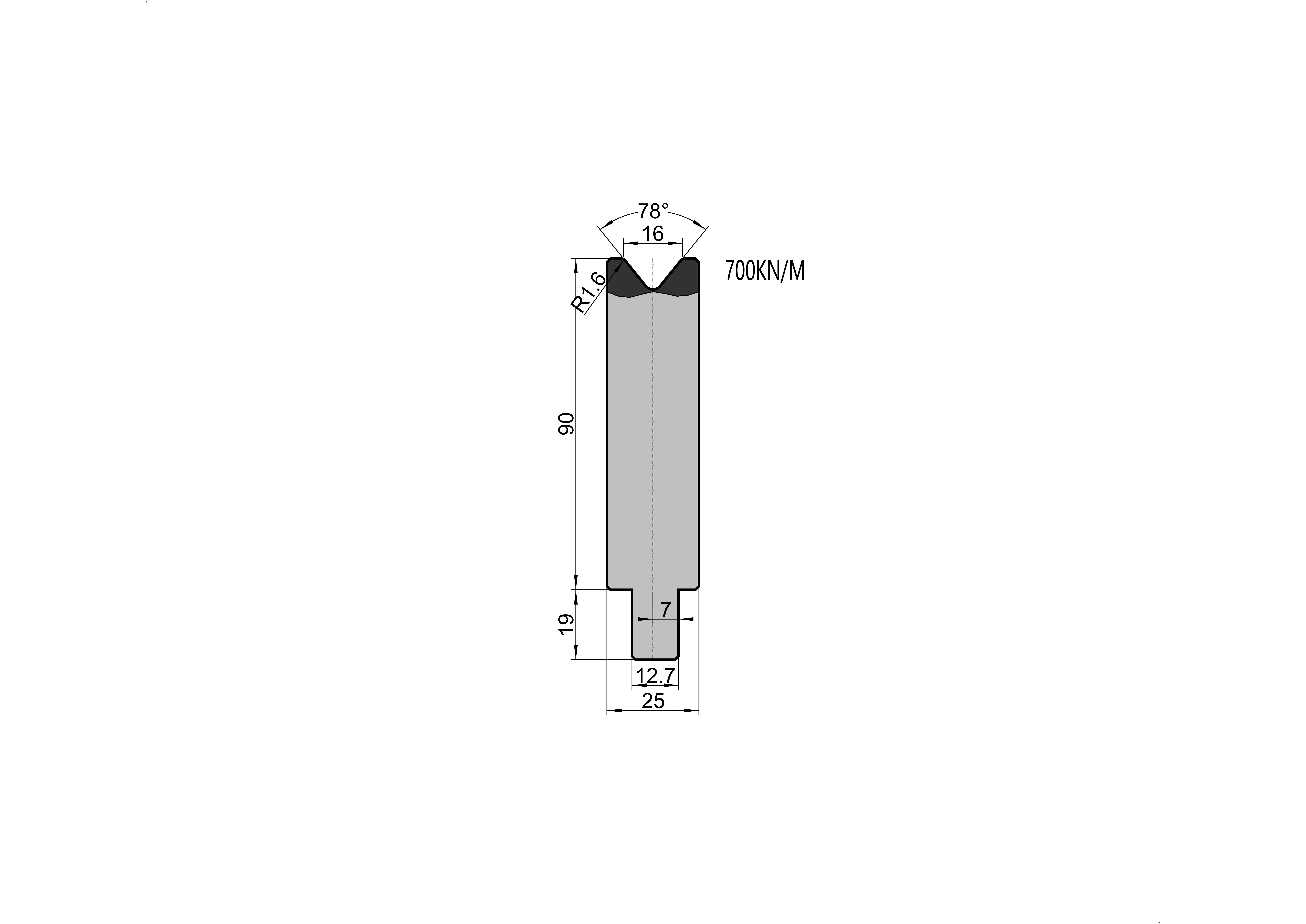

LVD Die 26.215 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
