Radius Blade 15.765 - R2.0 mm

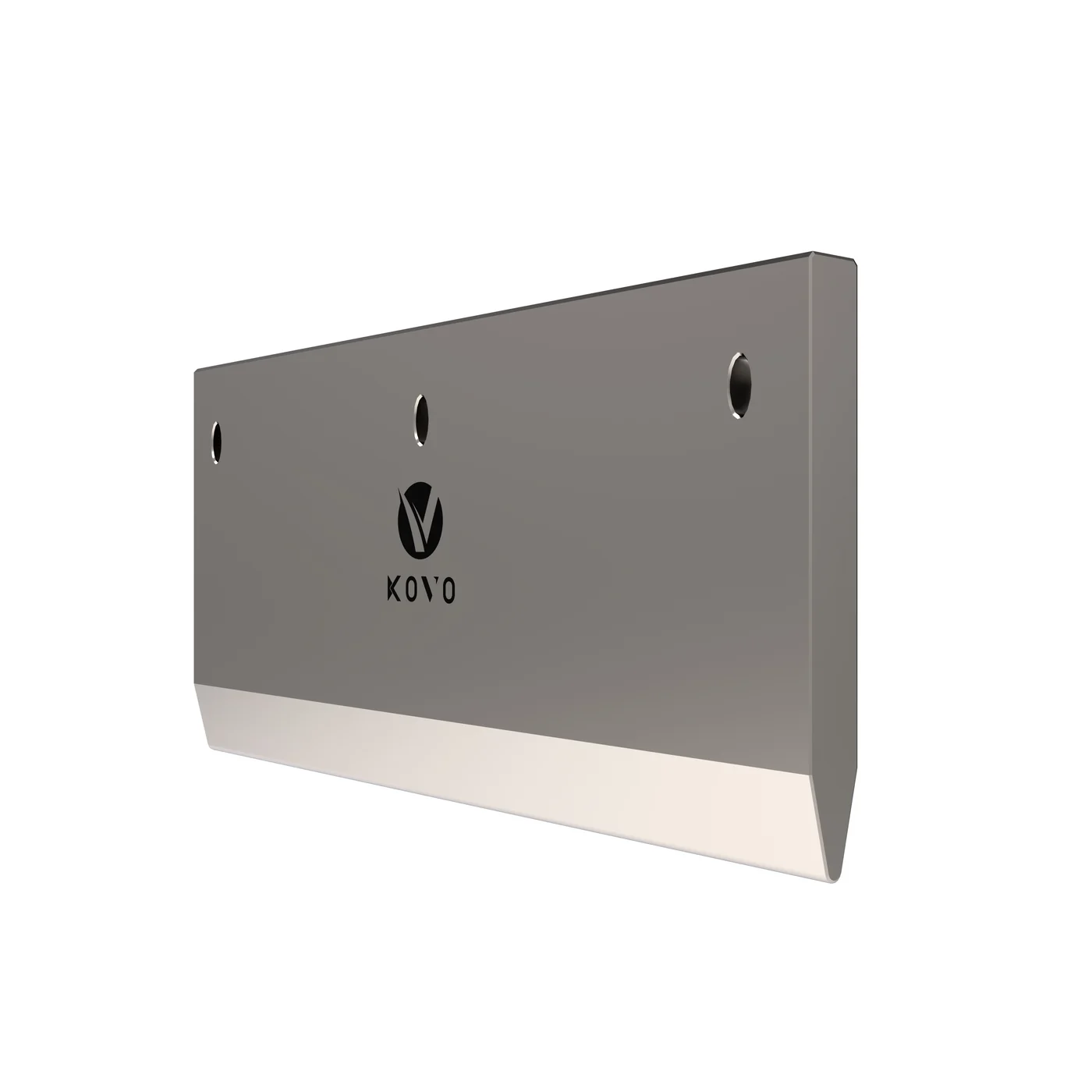

Radius Blade 15.765 - R2.0 mm is a 28° replaceable press brake blade with R 2.0 mm tip radius, 100 mm height and compatibility with AMADA / TRUMPF / WILA /...
Model: 15.765
Product type: Punch
Compatible tooling system: AMADA, TRUMPF, WILA, LVD, BYSTRONIC, EHT, WEINBRENNER
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: 42 CrMo
- Working radii: Hardened to the COVO HRC 58–60 process range where specified
- Surface finish: Precision-ground working and locating faces
- Fit & repeatability: Matched for parallel installation and repeat replacement
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Radius Blade
- Tooling system: AMADA / TRUMPF / WILA / LVD / BYSTRONIC / EHT / WEINBRENNER
- Material: 42 CrMo
- Profile geometry: Angle 28° · Radius R 2.0 mm · Height 100 mm · Holder AMADA 10.400; TRUMPF/WILA/LVD 15.755 / 15.760; BYSTRONIC 14.282; EHT 17.070; WEINBRENNER 17.570
- Published load: 1000 kN/m max.
Product specifications
- Tooling System
- AMADA / TRUMPF / WILA / LVD / BYSTRONIC / EHT / WEINBRENNER
- Product Family
- Radius Blade
- Compatible System
- AMADA / TRUMPF / WILA / LVD / BYSTRONIC / EHT / WEINBRENNER
- Angle
- 28°
- Radius
- R 2.0 mm
- Height
- 100 mm
- Load Capacity
- 1000 kN/m max.
- Material
- 42 CrMo
- Compatible Holder
- AMADA 10.400; TRUMPF/WILA/LVD 15.755 / 15.760; BYSTRONIC 14.282; EHT 17.070; WEINBRENNER 17.570
PUNCH LENGTHS & SECTIONALIZATION
Tool family: PUNCHES.
Standard one-piece and sectionalized supply options for this punch family are shown below. Final stock, horn orientation and segment layout are confirmed on the quotation.
- Standard full length: 835 mm — One-piece punch for continuous bending lengths
- Short full length: 415 mm — One-piece punch for shorter setups and easier handling
800 mm sectionalized
Diagram: Sectional layout schematic — not to scale.
Segment count: 10.
10 segments with horn extensions on the left and right; supplied as a matched complete set.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
