COVO · AMADA-compatible punches

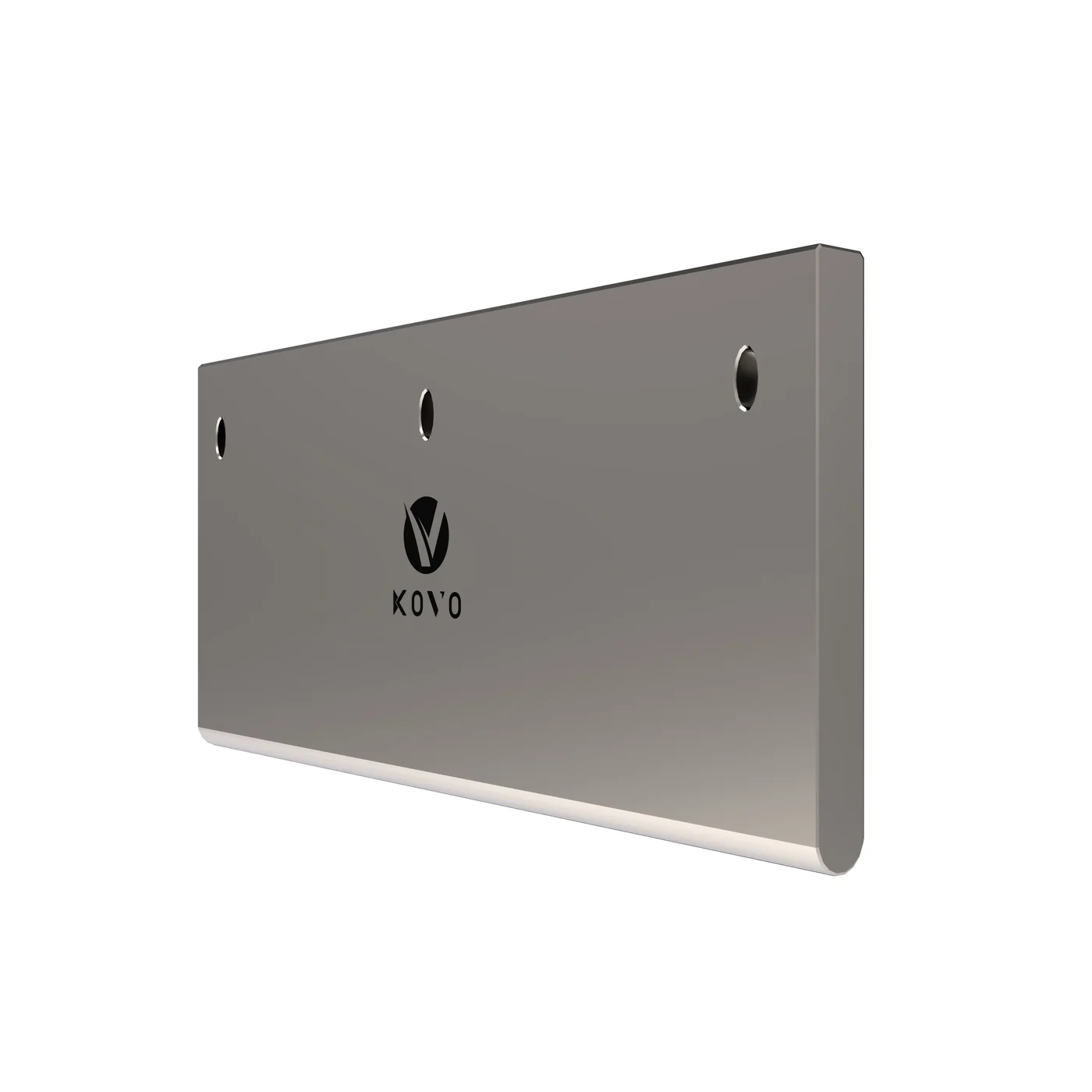

Radius Blade 15.769 - R6.0 mm

Model: 15.769

Product Details

Manufacturing standard

Material: 42 CrMo
Working radii: COVO HRC 58–60 process range where specified.
Precision-ground working and locating surfaces.
Matched locating faces for parallel installation and repeat setup.
Model identification and traceability marking as specified.

Clamping interface

COVO · Clamping interface — System illustration. Dimensions refer to the pictured interface examples, not to the selected model. Confirm the upper clamp and lower holder against your machine drawing.

Your selected profile

Tooling system: AMADA / TRUMPF / WILA / LVD / BYSTRONIC / EHT / WEINBRENNER
Product Family: Radius Blade
Tooling system: AMADA / TRUMPF / WILA / LVD / BYSTRONIC / EHT / WEINBRENNER
Angle: 28°
Tip radius: R 6.0 mm
Height: 100 mm
Catalog load: 1000 kN/m max.
Material: 42 CrMo
Compatible Holder: AMADA 10.400; TRUMPF/WILA/LVD 15.755 / 15.760; BYSTRONIC 14.282; EHT 17.070; WEINBRENNER 17.570

Catalog views for this model. Open the drawing to inspect the complete profile; use the approved drawing for final dimensions and allowable load.

Tool lengths · Punches / top tools

This model has a product-specific length program. Alternative lengths, segment quantities and horn details require quotation review.

Final configuration review

Press brake brand and machine model
Required working or bend length
Material grade and sheet thickness
Finished profile or part drawing

Ask About This Tool · Email This Product
