Radius Punch 10.193 - R15.0-50.0 mm

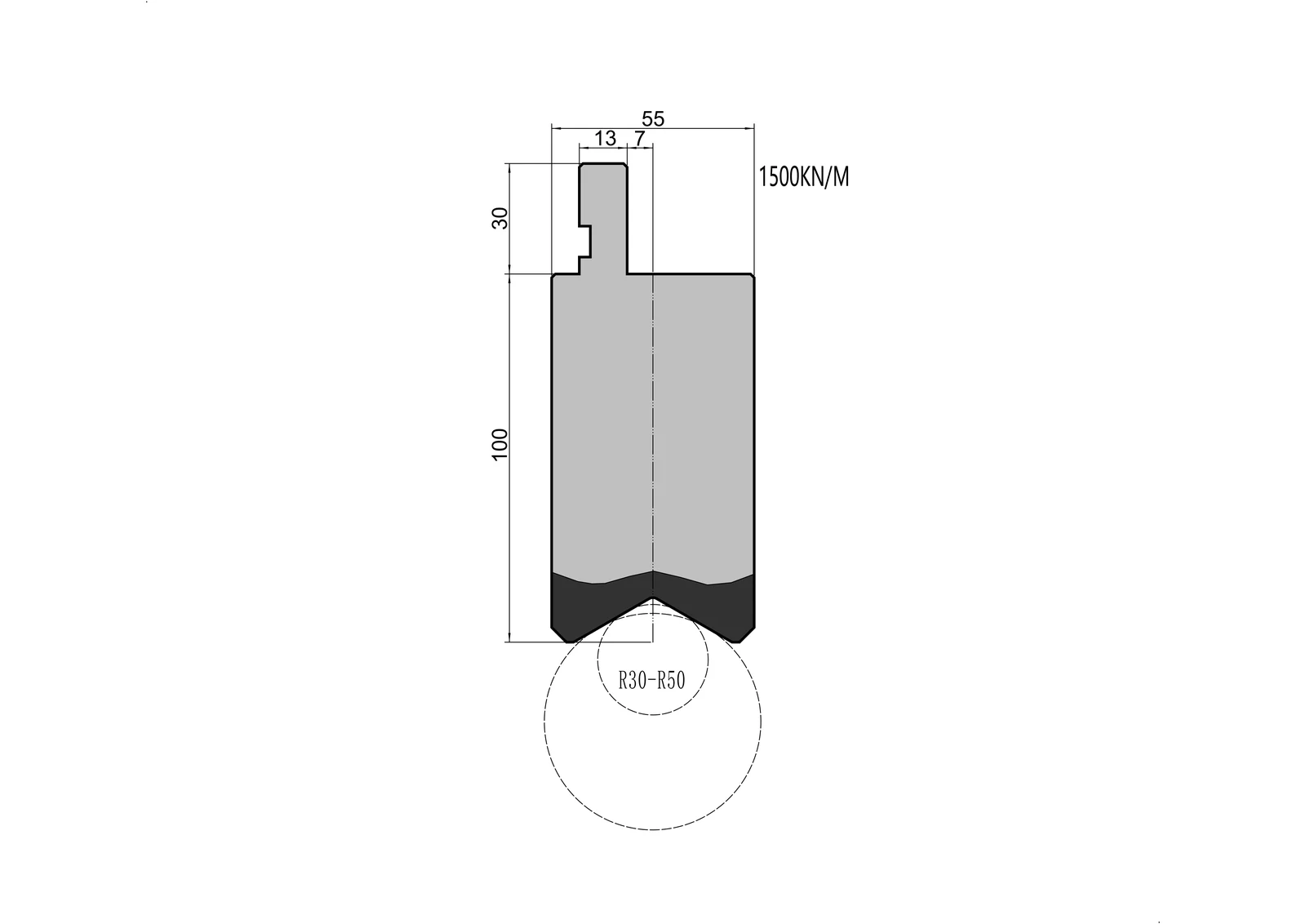

Radius Punch 10.193 - R15.0-50.0 mm is a radius punch with R 15.0 - 50.0 mm radius, 100 mm height, 1500 kN/m max. load capacity and 42CrMo material.
Model: 10.193
Product type: Punch
Compatible tooling system: Radius Tools, COVO-System Amada
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: 42CrMo
- Working radii: Hardened to the COVO HRC 58–60 process range where specified
- Surface finish: Precision-ground working and locating faces
- Fit & repeatability: Matched for parallel installation and repeat replacement
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Radius Punch
- Tooling system: COVO-System Amada
- Material: 42CrMo
- Profile geometry: Radius R 15.0 - 50.0 mm · Height 100 mm
- Published load: 1500 kN/m max.
Product specifications
- Tooling System
- Radius Tools
- Product Family
- Radius Punch
- Compatible System
- COVO-System Amada
- Radius
- R 15.0 - 50.0 mm
- Height
- 100 mm
- Load Capacity
- 1500 kN/m max.
- Material
- 42CrMo
PUNCH LENGTHS & SECTIONALIZATION
Tool family: PUNCHES.
Standard one-piece and sectionalized supply options for this punch family are shown below. Final stock, horn orientation and segment layout are confirmed on the quotation.
- Standard full length: 835 mm — One-piece punch for continuous bending lengths
- Short full length: 415 mm — One-piece punch for shorter setups and easier handling
800 mm sectionalized
Diagram: Sectional layout schematic — not to scale.
Segment count: 10.
10 segments with horn extensions on the left and right; supplied as a matched complete set.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
