Radius Punch 15.020 - R10.0-25.0 mm

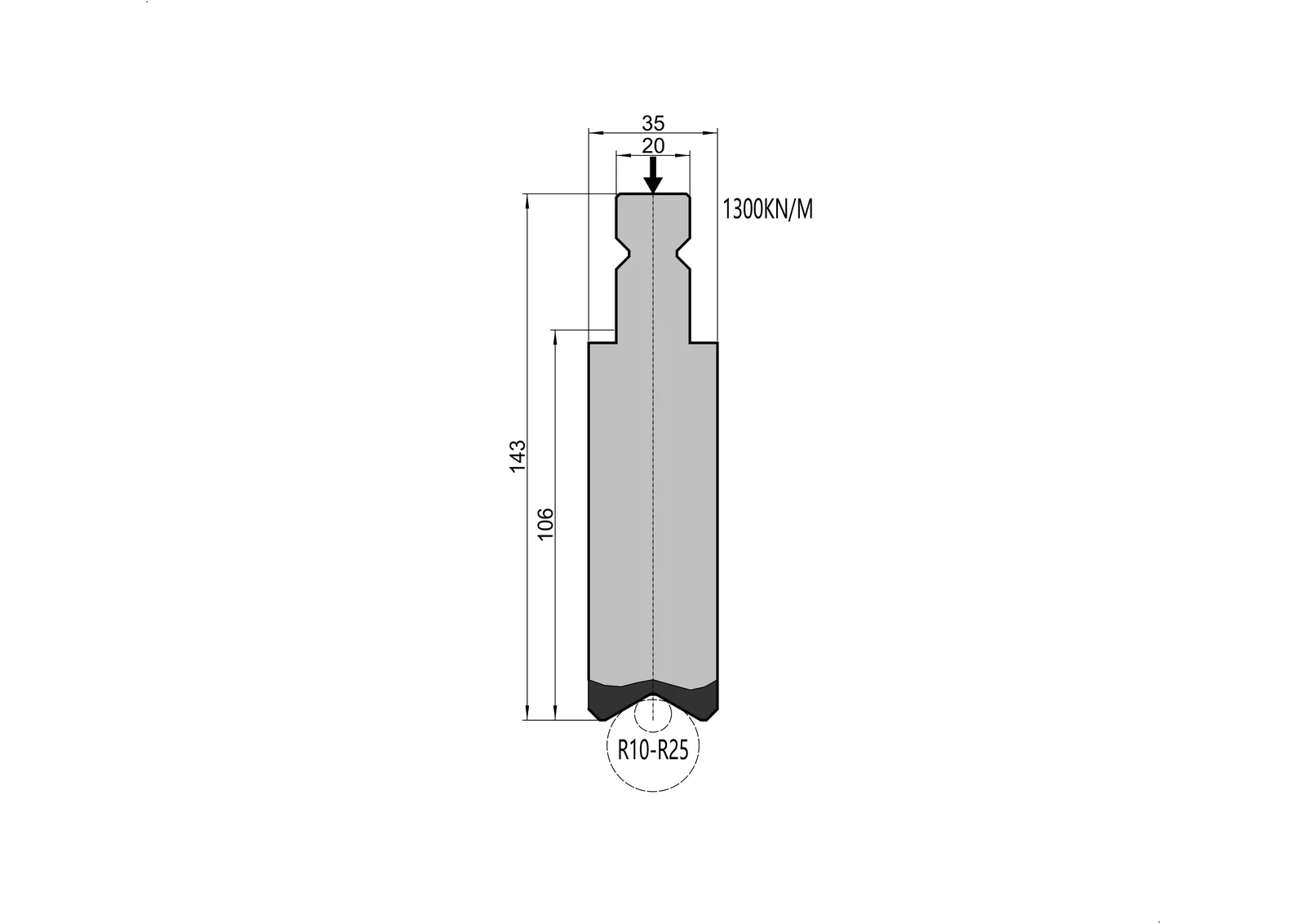

Radius Punch 15.020 - R10.0-25.0 mm is a radius punch with R 10.0 - 25.0 mm radius, 106 mm height, 1300 kN/m max. load capacity and 42CrMo material.
Model: 15.020
Product type: Punch
Compatible tooling system: Radius Tools, COVO-System Trumpf/Wila/LVD
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: 42CrMo
- Working radii: Hardened to the COVO HRC 58–60 process range where specified
- Surface finish: Precision-ground working and locating faces
- Fit & repeatability: Matched for parallel installation and repeat replacement
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Radius Punch
- Tooling system: COVO-System Trumpf/Wila/LVD
- Material: 42CrMo
- Profile geometry: Radius R 10.0 - 25.0 mm · Height 106 mm
- Published load: 1300 kN/m max.
Product specifications
- Tooling System
- Radius Tools
- Product Family
- Radius Punch
- Compatible System
- COVO-System Trumpf/Wila/LVD
- Radius
- R 10.0 - 25.0 mm
- Height
- 106 mm
- Load Capacity
- 1300 kN/m max.
- Material
- 42CrMo
PUNCH LENGTHS & SECTIONALIZATION
Tool family: PUNCHES.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
