COVO DIE

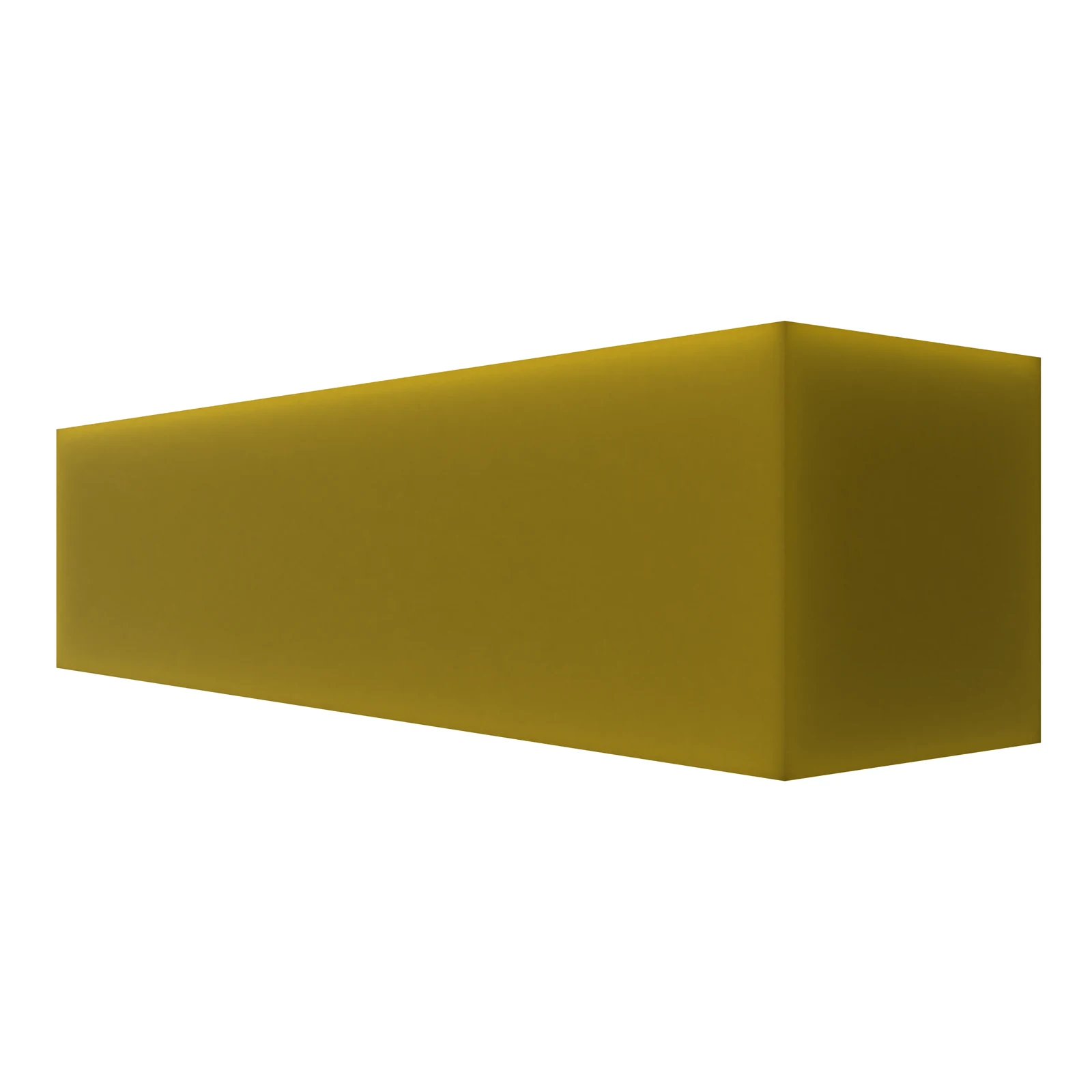

Solid Urethane Die Insert 34.295 - 50 x 50 mm, 95A
Solid Urethane Die Insert 34.295 - 50 x 50 mm, 95A is a replaceable solid urethane die insert for mark-free and mark-reduced press brake forming.
Model: 34.295
Product type: Die
Compatible tooling system: Markfree Bending
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Tool material: Application-matched polyurethane formulation
- Hardness: Published Shore hardness: 95A
- Sheet protection: Non-marking contact surface for finished or coated sheet
- Profile accuracy: Machined working profile for repeatable positioning
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Solid Urethane Die Insert
- Tooling range: Markfree Bending
- Material: Urethane · 95A
- Profile geometry: Height 50 mm · Width 50 mm
Product specifications
- Tooling System
- Markfree Bending
- Product Family
- Solid Urethane Die Insert
- Compatible System
- Markfree Bending
- Height
- 50 mm
- Width
- 50 mm
- Shore Hardness
- 95A
DIE LENGTHS & SECTIONALIZATION
Tool family: DIES.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
