COVO DIE
UniBend Mark-Free Die 28.300

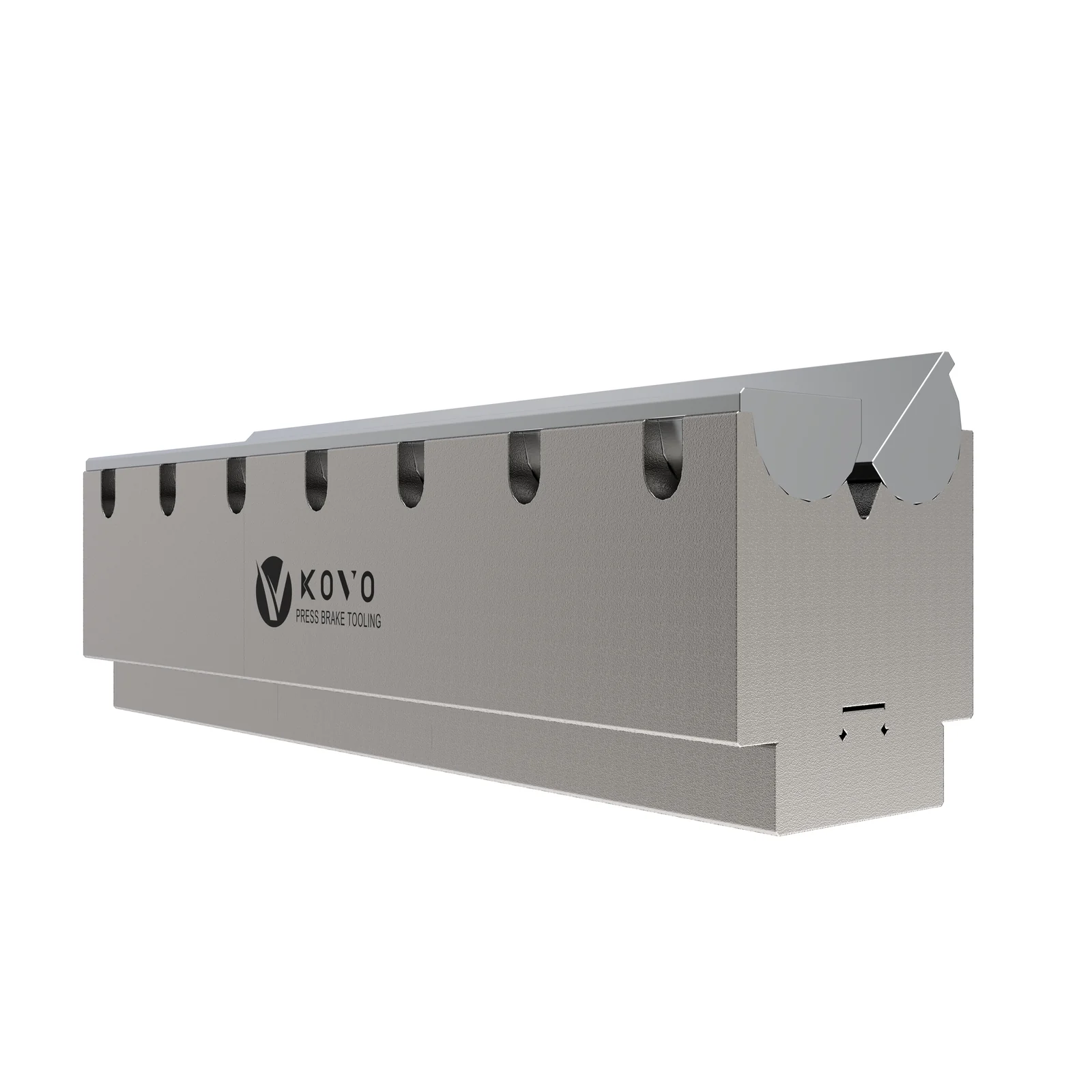

UniBend mark-free bending die with a 37.7 mm V-opening, 60° angle, 100 mm height and a maximum load of 2000 kN/m.
Model: 28.300
Product type: Die
Compatible tooling system: Markfree Bending
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: 42 CrMo4
- Working radii: Hardened to the COVO HRC 58–60 process range where specified
- Surface finish: Precision-ground working and locating faces
- Fit & repeatability: Matched for parallel installation and repeat replacement
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: UniBend
- Tooling range: Markfree Bending
- Material: 42 CrMo4
- Profile geometry: Angle 60° · Opening 37.7 mm · Height 100 mm
- Published load: 2000 kN/m max.
Product specifications
- Tooling System
- Markfree Bending
- Product Family
- UniBend
- Angle
- 60°
- Die opening
- 37.7 mm
- Height
- 100 mm
- Load Capacity
- 2000 kN/m max.
- Material
- 42 CrMo4
DIE LENGTHS & SECTIONALIZATION
Tool family: DIES.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
