Flexible die opening
One adjustable die concept for changing bend requirements
For changing thicknesses and bend requirements, an adjustable die can reduce repeated fixed-die changes and storage pressure.
Challenge
A narrow tooling selection can force compromises between setup changes, available V-openings and the required bend radius.
Approach
Working range, roller radius and load reference are kept together so the die can be compared directly with the job requirement.
Outcome
The workshop gains a flexible option for moving between bend widths while keeping setup decisions precise.
Case details

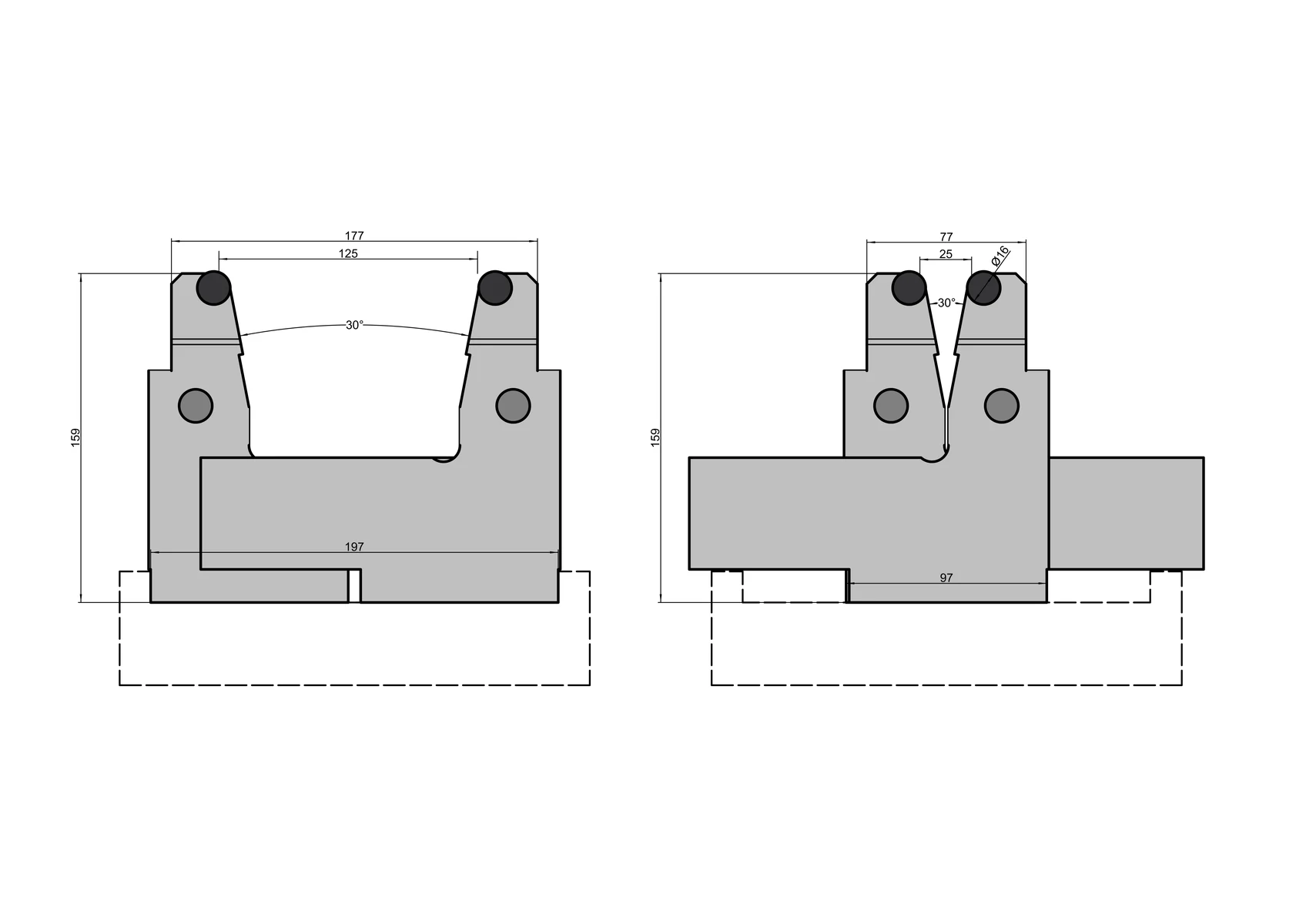

- Model
- Adjustable Die 65.125
- Die opening
- V 25 - 125 mm
- Roller radius
- R 8 mm
- Load capacity
- 1250 kN/m max. at 90°
