Custom profiles
Turning a profile drawing into a controlled forming sequence
A useful forming concept considers the final profile, tool access and part-removal sequence together from the start.
Challenge
Complex profiles can require repeated manual repositioning, increasing sensitivity to operator technique and springback.
Approach
The profile reference, tool image and forming geometry are reviewed together, then matched to the intended press-brake sequence.
Outcome
Production gains a clearer route from drawing review to repeatable profile output and technical quotation.
Case details
- Tool family
- Custom forming tool
- Reference

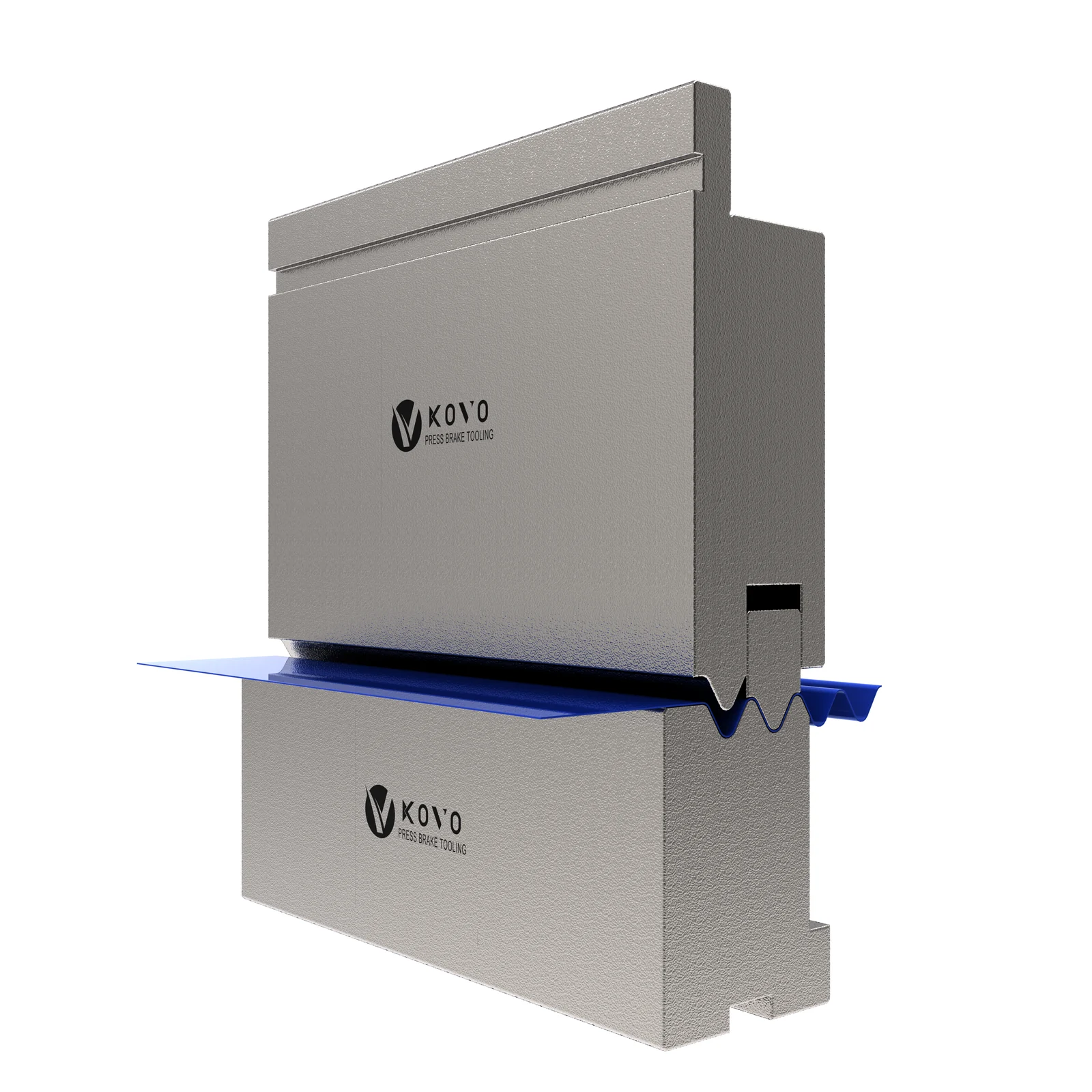

- COVO Forming Tool FT-020
- Design input
- Profile drawing + sample
