Controlled radius
A repeatable radius reference for large-radius sheet-metal bends
Large-radius work is easier to plan when the radius range and tool height are clear before tool selection.
Challenge
Discussing radius separately from machine setup makes it harder to confirm the punch's working clearance.
Approach

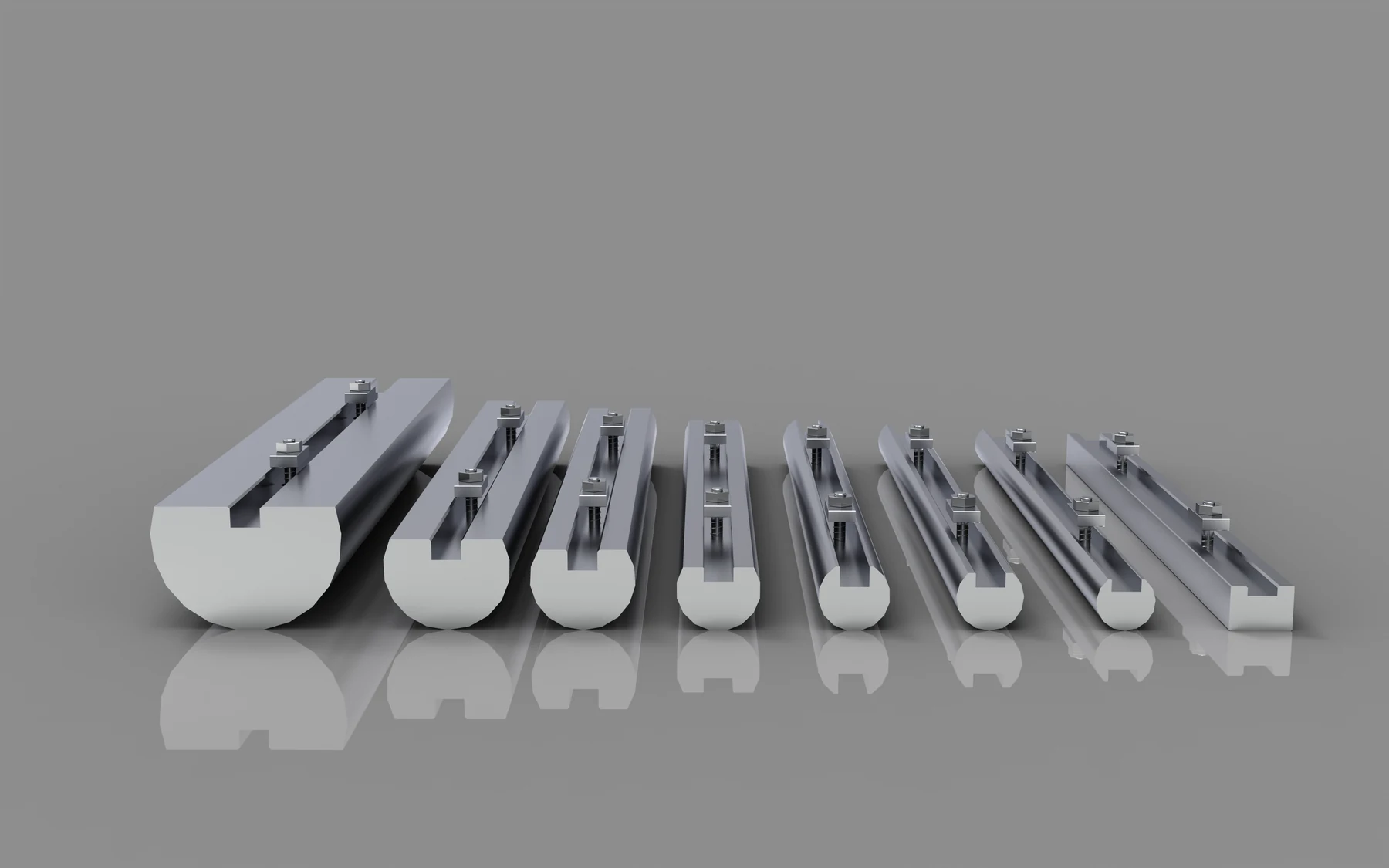

Radius range, height, load reference and material are presented with an application image for review before ordering.
Outcome
The tooling record becomes a practical reference for repeat radius work, technical review and future matching tools.
Case details
- Model
- Radius Punch 10.115
- Radius
- R 7.0 - 50.0 mm
- Height
- 67 mm
- Material
- 42CrMo
