Press Brake Backgauge and Tooling: Align the Reference Before You Bend

Published:

Last reviewed:

Use the backgauge, tool centerline and part datum together to improve flange dimensions and repeatability.

Press Brake Backgauge and Tooling: Align the Reference Before You Bend

A backgauge position is only useful when it references the same geometry every time. Tool alignment, part orientation and contact stability all affect the final flange.

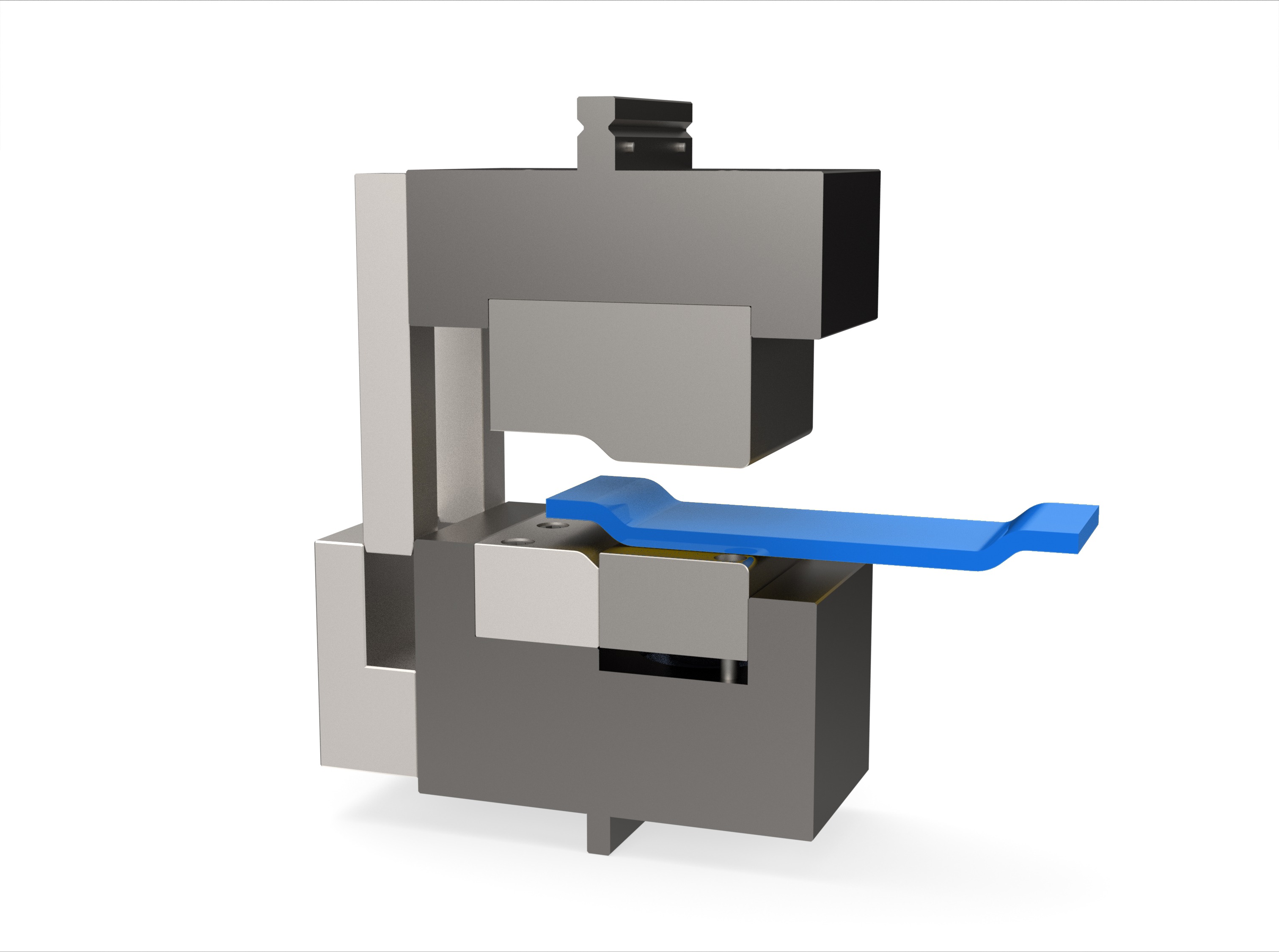

Press Brake Backgauge and Tooling: Align the Reference Before You Bend - COVO press brake tooling referenceCOVO
Reference view: Press Brake Backgauge and Tooling: Align the Reference Before You Bend. Source material selected for its tooling focus and presented with COVO identification.

Why Press Brake Backgauge and Tooling: Align the Reference Before You Bend matters in production

Press Brake Backgauge and Tooling: Align the Reference Before You Bend is not only a catalogue or programming question. It affects the load path, the way the sheet moves over the tool, the clearance available to the finished part and the amount of correction an operator needs after the first bend. A decision that works for a short trial may behave differently when the tool is used across a long bend, a different material batch or a repeat order.

The most useful way to approach this subject is to connect the drawing, the machine, the tooling and the inspection method before the cycle begins. Start with the required part geometry and visible surfaces, then verify the interface and dimensions of the tooling. Finally, define how the first part will be measured and which correction is allowed. This sequence keeps the conversation grounded in production evidence rather than a single nominal dimension.

Choose a clear datum

Decide whether the backgauge references the finished edge, a flange or a temporary feature. Mark the orientation on the drawing and keep it consistent through the sequence.

For a real setup & process decision, do not isolate choose a clear datum from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Check interference and support

A deep punch, radius tool or forming profile may block the usual gauge position. Use the right gauge point or a special support rather than forcing the part against the tool.

For a real setup & process decision, do not isolate check interference and support from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Validate the first bend

Measure the flange and angle together. If the flange is correct but the angle is not, inspect the bending depth; if both move, inspect datum stability and tool alignment.

For a real setup & process decision, do not isolate validate the first bend from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Press Brake Backgauge and Tooling: Align the Reference Before You Bend - COVO press brake tooling referenceCOVO
COVO reference detail: the tooling profile and production context should be reviewed together before release.

A complete COVO review sequence

For Press Brake Backgauge and Tooling: Align the Reference Before You Bend, COVO recommends a review that can be repeated by another operator or another shift. First, describe the finished section, including bend angle, inside radius, flange length, return direction and any surface that must remain visually clean. Next, identify the material, thickness, strength range, bend length and expected quantity. These fields define the working conditions more reliably than a request for a generic “standard tool.”

Then map the machine interface. Confirm whether the upper and lower tools use an AMADA, TRUMPF, WILA, LVD or BYSTRONIC-style mounting arrangement, or whether the job belongs to a forming, radius, adjustable or mark-free tooling family. Check open height, clamp access, die support and backgauge clearance before the tool is released. A profile that looks correct in isolation can still be unusable when the full stack is installed.

  1. Define the part: mark the critical dimensions, bend sequence, visible face and tolerance on the drawing or sample.
  2. Define the tool: record the punch profile, die opening, working height, usable length, interface and surface condition.
  3. Define the machine: confirm tonnage, stroke, clamping, crowning or compensation and available clearance.
  4. Define the proof: agree on the first-piece measurement, acceptable correction and the information that will be stored for the next run.

Verification, troubleshooting and repeatability

The first bend is a verification step, not merely a production cycle. Measure the released angle and the dimensions that control fit, then inspect the working surface under the same light and handling conditions used for the finished part. If the result is wrong, change one variable at a time. A depth correction cannot solve a damaged die shoulder; a new die opening cannot solve a wrong datum; and a polishing operation cannot replace a tool profile that does not clear the part.

Keep a simple record of the approved tool combination, material data, controller correction, backgauge datum and inspection result. On a repeat job, this record reduces setup time and makes a drift visible before a full batch is affected. It also gives COVO enough technical context to recommend a replacement, a special profile, a surface-protection insert or a different tooling system when the process has changed.

Practical checklist

Questions to answer before release

COVO engineering note: COVO can review tool height and profile clearance when a special punch or forming tool changes the normal backgauge method. The more complete the drawing, material and machine information, the more precisely the tooling recommendation can be matched to the actual production condition.
