Press Brake Bending Basics: A Repeatable Setup Logic for New Operators

Accurate bending begins before the ram moves. A clear sequence for reading the part, preparing the tools and validating the first bend gives operators a reliable way to handle unfamiliar jobs.

Why Press Brake Bending Basics: A Repeatable Setup Logic for New Operators matters in production

Press Brake Bending Basics: A Repeatable Setup Logic for New Operators is not only a catalogue or programming question. It affects the load path, the way the sheet moves over the tool, the clearance available to the finished part and the amount of correction an operator needs after the first bend. A decision that works for a short trial may behave differently when the tool is used across a long bend, a different material batch or a repeat order.

The most useful way to approach this subject is to connect the drawing, the machine, the tooling and the inspection method before the cycle begins. Start with the required part geometry and visible surfaces, then verify the interface and dimensions of the tooling. Finally, define how the first part will be measured and which correction is allowed. This sequence keeps the conversation grounded in production evidence rather than a single nominal dimension.

Understand the three-point contact

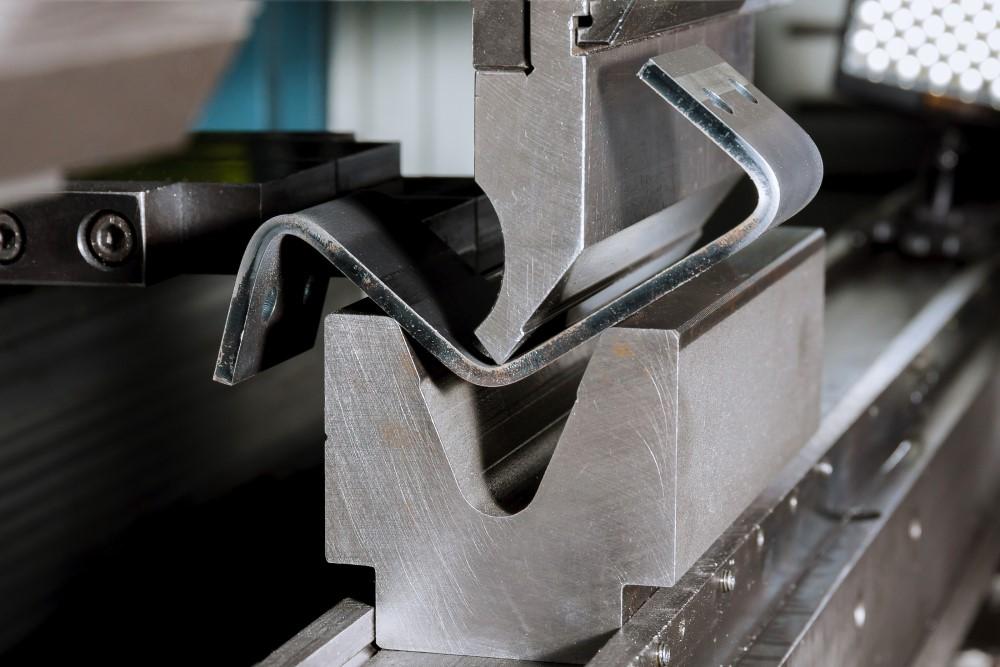

In air bending, the punch drives the sheet into the V-die while the two shoulders support the material. The final angle depends on depth, opening, material and springback rather than on the punch angle alone.

For a real bending fundamentals decision, do not isolate understand the three-point contact from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Set the tools before setting the program

Clean the clamping faces, position the punch and die, verify the centerline and confirm the tool length. Then enter bend angle, material data and backgauge positions. A correct program cannot compensate for a wrong tool profile.

For a real bending fundamentals decision, do not isolate set the tools before setting the program from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Use a measured first piece

Measure the angle and critical flange dimensions after the material has relaxed. Adjust depth or compensation in small, recorded steps, and keep the approved setup with the job traveler.

For a real bending fundamentals decision, do not isolate use a measured first piece from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

A complete COVO review sequence

For Press Brake Bending Basics: A Repeatable Setup Logic for New Operators, COVO recommends a review that can be repeated by another operator or another shift. First, describe the finished section, including bend angle, inside radius, flange length, return direction and any surface that must remain visually clean. Next, identify the material, thickness, strength range, bend length and expected quantity. These fields define the working conditions more reliably than a request for a generic “standard tool.”

Then map the machine interface. Confirm whether the upper and lower tools use an AMADA, TRUMPF, WILA, LVD or BYSTRONIC-style mounting arrangement, or whether the job belongs to a forming, radius, adjustable or mark-free tooling family. Check open height, clamp access, die support and backgauge clearance before the tool is released. A profile that looks correct in isolation can still be unusable when the full stack is installed.

1. Define the part: mark the critical dimensions, bend sequence, visible face and tolerance on the drawing or sample.
2. Define the tool: record the punch profile, die opening, working height, usable length, interface and surface condition.
3. Define the machine: confirm tonnage, stroke, clamping, crowning or compensation and available clearance.
4. Define the proof: agree on the first-piece measurement, acceptable correction and the information that will be stored for the next run.

Verification, troubleshooting and repeatability

The first bend is a verification step, not merely a production cycle. Measure the released angle and the dimensions that control fit, then inspect the working surface under the same light and handling conditions used for the finished part. If the result is wrong, change one variable at a time. A depth correction cannot solve a damaged die shoulder; a new die opening cannot solve a wrong datum; and a polishing operation cannot replace a tool profile that does not clear the part.

Keep a simple record of the approved tool combination, material data, controller correction, backgauge datum and inspection result. On a repeat job, this record reduces setup time and makes a drift visible before a full batch is affected. It also gives COVO enough technical context to recommend a replacement, a special profile, a surface-protection insert or a different tooling system when the process has changed.

Practical checklist

• Wear the required PPE and follow the machine-specific safety procedure.
• Check tooling condition, clamping and alignment before loading material.
• Run a low-risk test or scrap coupon when the material or tool is new.
• Record the final depth, angle correction and tool combination.

Questions to answer before release

• Which dimension or surface is the true acceptance criterion for this job?
• What changes if the material thickness, strength or grain direction varies?
• Can the selected tool be clamped, supported, cleaned and stored without damaging its reference surfaces?
• What evidence will show that the setup is still repeatable after a tool change or a new material batch?
