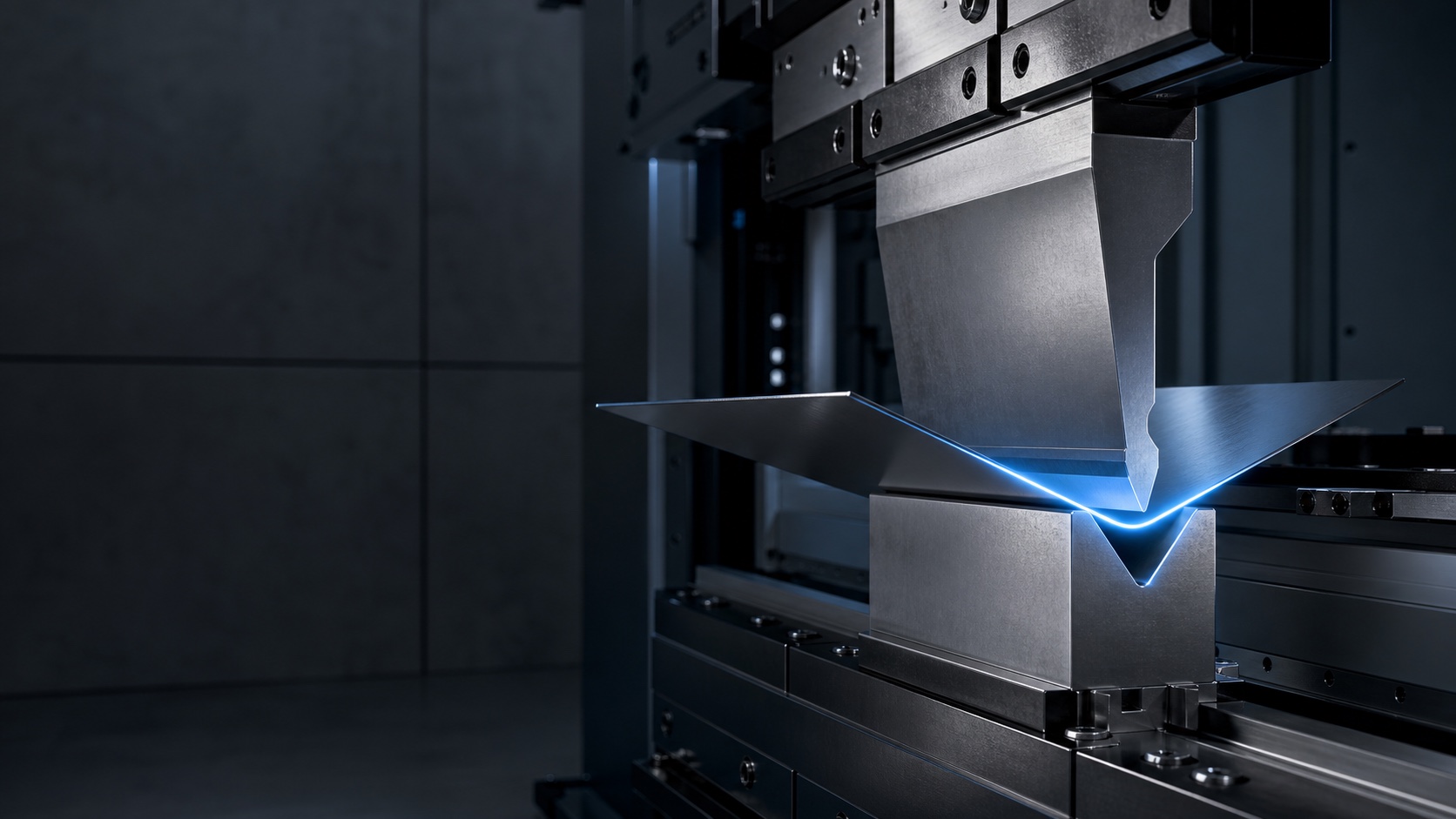

Press Brake Bending Force: How to Estimate Tonnage Before Production
Published:
Last reviewed:
Learn how to estimate press brake bending force from material thickness, effective bend length and V-die opening, with a worked carbon-steel and stainless-steel example.
Press brake tonnage should be estimated before a punch, die and workpiece are placed under load. The reference from the fourth slide of the training presentation introduces a practical formula for a quick carbon-steel estimate and shows how to convert the result into press brake tonnes.
The basic press brake bending force formula
For the carbon-steel example, the slide uses the following reference relationship:
P is the estimated bending force in kilonewtons (kN). S is material thickness in millimetres (mm). L is the effective bend length in metres (m). V is the lower die opening in millimetres (mm).
The formula is useful because it makes the main load variables visible. Thickness has a squared effect, bend length increases the required force, and a wider V-opening generally reduces the estimated force for the same material and bend length.
Worked example: 3 mm carbon steel, 4 m bend and V25
The slide asks how much press brake capacity is needed for a 3.0 mm carbon-steel sheet with a 4 m effective bend length and a V25 die opening. Substitute the values into the reference formula:
P = 650 × 3² × 4 / 25 = 936 kN
To express the result as tonnes of force, use the approximate conversion shown in the example:
936 kN / 9.8 = approximately 95.5 tonnes
That means the reference estimate is about 95.5 tonnes for the stated carbon-steel conditions. It is a planning value for the selected bend length and die opening, not a universal machine recommendation.
How stainless steel changes the estimate
The slide then applies a factor of 1.6 for stainless steel:
95.5 × 1.6 = approximately 152.8 tonnes
This illustrates why material grade must be included in a tooling request. Changing from carbon steel to stainless steel can materially change the machine capacity required for the same thickness, length and V-opening. The actual correction should follow the material specification, machine guidance and the selected bending method.
What each variable means in production
Material thickness: S
Thickness is the most sensitive variable in this reference formula because it is squared. A small increase in thickness can produce a much larger change in estimated force. Confirm the actual sheet thickness rather than relying only on a nominal material label.
Effective bend length: L
Use the length of the bend that is actually being formed. A long, continuous bend distributes load differently from a short bend, while a short bend can concentrate force on a smaller section of the punch, die and machine table. Record the loaded length, not only the overall blank length.
V-die opening: V
The lower die opening affects the force, inside radius, flange support and material flow. A wider opening can lower the estimated load, but it also changes the bending geometry. The die opening must still support the required inside radius, minimum flange and finished angle.
Material factor
Carbon steel and stainless steel do not behave identically under load. Yield strength, tensile strength, thickness tolerance and springback can all affect the final result. Use a documented factor for the material family and confirm it against the manufacturer's data or an approved shop calculation.
Why tonnage estimation is more than a calculator result
A formula can provide a useful first estimate, but it cannot by itself confirm every condition in a press brake setup. Before production, review the complete load path:
- Press brake rated capacity and the machine's working length.
- Punch, die, holder and clamping-system load ratings.
- Actual material grade, thickness and effective bend length.
- Selected V-opening, punch radius and bending method.
- Short-bend load concentration and the possibility of local overload.
- Machine deflection, crowning, tool support and part handling.
- Clearance between the tool, workpiece, backgauge and machine envelope.
The lowest rated component controls the safe working limit. A large press brake does not make an underrated punch or die safe, and a correct force estimate does not compensate for incorrect clamping or a damaged tool shoulder.
How bending force affects tooling selection
Force estimation should be connected to the tool profile. A standard punch and V-die may be appropriate for an open bend, while a gooseneck, radius, forming or mark-free tool may be needed for clearance or surface requirements. The selected tooling system also matters: confirm the upper and lower interface for AMADA, TRUMPF, WILA, LVD, BYSTRONIC or another machine standard before comparing dimensions.
If a wider V-opening is selected to reduce force, verify the resulting inside radius and minimum flange. If the opening is reduced to achieve a tighter geometry, check whether the increased load remains within the machine and tool ratings. Tool geometry and tonnage should be reviewed as one decision.
A practical pre-production tonnage checklist
- Read the drawing: identify material, thickness, bend angle, inside radius and bend length.
- Define the actual load: use the effective bend length and the selected bending method.
- Choose a starting V-opening: confirm radius, flange support and tool clearance.
- Calculate the reference force: apply the formula and the appropriate material factor.
- Compare ratings: check the press brake, punch, die, holder and clamp as a complete load path.
- Validate a first piece: measure angle, radius, flange dimensions and surface condition after release.
- Record the setup: keep the approved force estimate, tool models, material data and correction with the job.
Common questions about press brake bending force
Is 95.5 tonnes enough for the 3 mm carbon-steel example?
It is the approximate reference result for 3 mm carbon steel, a 4 m effective bend length and V25 using the slide formula. Before production, check the machine and tooling ratings, actual material condition, bend method, safety margin and any short-bend concentration.
Why does stainless steel require more capacity in the example?
The example applies a 1.6 material factor, giving approximately 152.8 tonnes. Stainless steel grade and actual strength vary, so the factor should be treated as an engineering starting point and verified against the material and process data.
Can a wider die opening always solve a high-tonnage problem?
No. A wider opening may reduce the estimated force, but it also changes the inside radius, flange support and final angle. The opening must remain compatible with the drawing, material, punch, machine and required quality.
What should be sent to COVO for a tooling recommendation?
Share the part drawing or section, material grade, thickness, effective bend length, target angle, inside radius, preferred V-opening, press brake system and production quantity. This lets COVO review force, geometry, clearance and tooling interface together.
