How to Select Press Brake Tooling That Fits the Part, Machine and Production Run

Press brake tooling is a process decision, not a catalogue decision. A tool that looks correct on paper can still create clearance problems, unstable angles or surface marks when the machine, material and production volume are not considered together.

Why How to Select Press Brake Tooling That Fits the Part, Machine and Production Run matters in production

How to Select Press Brake Tooling That Fits the Part, Machine and Production Run is not only a catalogue or programming question. It affects the load path, the way the sheet moves over the tool, the clearance available to the finished part and the amount of correction an operator needs after the first bend. A decision that works for a short trial may behave differently when the tool is used across a long bend, a different material batch or a repeat order.

The most useful way to approach this subject is to connect the drawing, the machine, the tooling and the inspection method before the cycle begins. Start with the required part geometry and visible surfaces, then verify the interface and dimensions of the tooling. Finally, define how the first part will be measured and which correction is allowed. This sequence keeps the conversation grounded in production evidence rather than a single nominal dimension.

Start with the finished part

Read the drawing first: inside radius, bend angle, flange length, return direction and any visible surface determine the working profile. Add the material grade and thickness because the same punch and V-die behave differently as strength and springback change.

For a real tooling selection decision, do not isolate start with the finished part from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Match the machine interface

Confirm the upper and lower mounting style before comparing dimensions. COVO supplies tooling for AMADA, TRUMPF, WILA, LVD and BYSTRONIC-style systems, plus forming, radius, adjustable and mark-free solutions for applications that standard sets cannot cover.

For a real tooling selection decision, do not isolate match the machine interface from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

Balance accuracy with changeover time

For repeat work, segmented punches, quick clamping and a well-organized tool set can reduce setup time more than a small change in press force. For prototypes, a flexible die or special tool may be the better investment.

For a real tooling selection decision, do not isolate balance accuracy with changeover time from the rest of the setup. Confirm the machine interface, working length, available height, material condition and inspection method at the same time. That cross-check is what turns a technically plausible choice into a repeatable production choice. When a value is uncertain, record the assumption, run a controlled first piece and update the setup record with the measured result.

A complete COVO review sequence

For How to Select Press Brake Tooling That Fits the Part, Machine and Production Run, COVO recommends a review that can be repeated by another operator or another shift. First, describe the finished section, including bend angle, inside radius, flange length, return direction and any surface that must remain visually clean. Next, identify the material, thickness, strength range, bend length and expected quantity. These fields define the working conditions more reliably than a request for a generic “standard tool.”

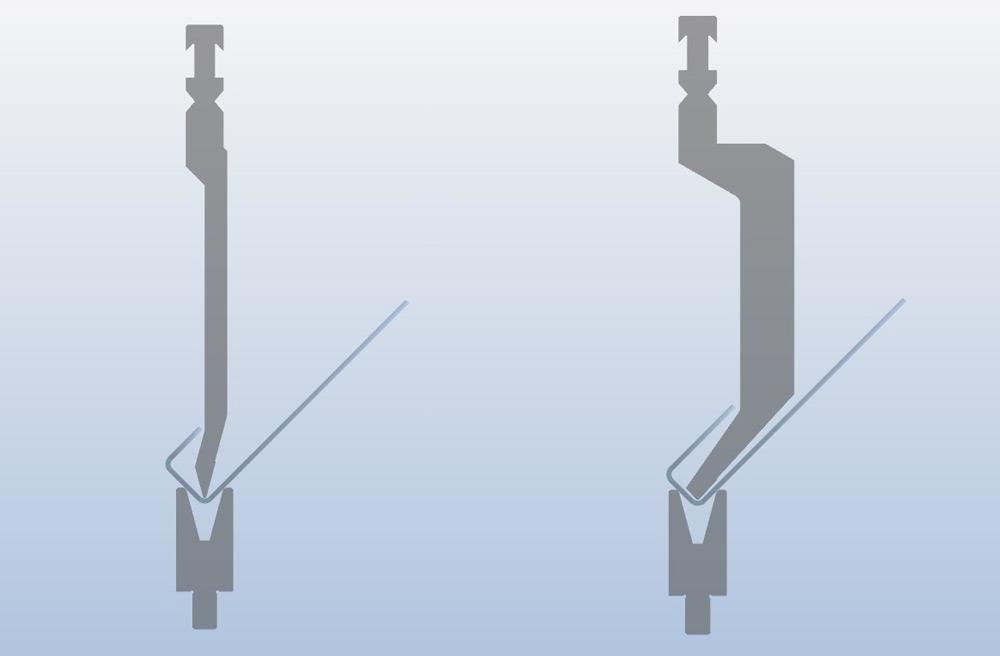

Then map the machine interface. Confirm whether the upper and lower tools use an AMADA, TRUMPF, WILA, LVD or BYSTRONIC-style mounting arrangement, or whether the job belongs to a forming, radius, adjustable or mark-free tooling family. Check open height, clamp access, die support and backgauge clearance before the tool is released. A profile that looks correct in isolation can still be unusable when the full stack is installed.

1. Define the part: mark the critical dimensions, bend sequence, visible face and tolerance on the drawing or sample.
2. Define the tool: record the punch profile, die opening, working height, usable length, interface and surface condition.
3. Define the machine: confirm tonnage, stroke, clamping, crowning or compensation and available clearance.
4. Define the proof: agree on the first-piece measurement, acceptable correction and the information that will be stored for the next run.

Verification, troubleshooting and repeatability

The first bend is a verification step, not merely a production cycle. Measure the released angle and the dimensions that control fit, then inspect the working surface under the same light and handling conditions used for the finished part. If the result is wrong, change one variable at a time. A depth correction cannot solve a damaged die shoulder; a new die opening cannot solve a wrong datum; and a polishing operation cannot replace a tool profile that does not clear the part.

Keep a simple record of the approved tool combination, material data, controller correction, backgauge datum and inspection result. On a repeat job, this record reduces setup time and makes a drift visible before a full batch is affected. It also gives COVO enough technical context to recommend a replacement, a special profile, a surface-protection insert or a different tooling system when the process has changed.

Practical checklist

• Record punch profile, die opening, included angle, height and usable length.
• Check the tool load against the machine's rated tonnage and the actual bend length.
• Protect visible surfaces with mark-free or radius tooling where standard steel contact is unsuitable.
• Send COVO the drawing, material and machine system when a standard combination is uncertain.

Questions to answer before release

• Which dimension or surface is the true acceptance criterion for this job?
• What changes if the material thickness, strength or grain direction varies?
• Can the selected tool be clamped, supported, cleaned and stored without damaging its reference surfaces?
• What evidence will show that the setup is still repeatable after a tool change or a new material batch?
