COVO ADAPTER

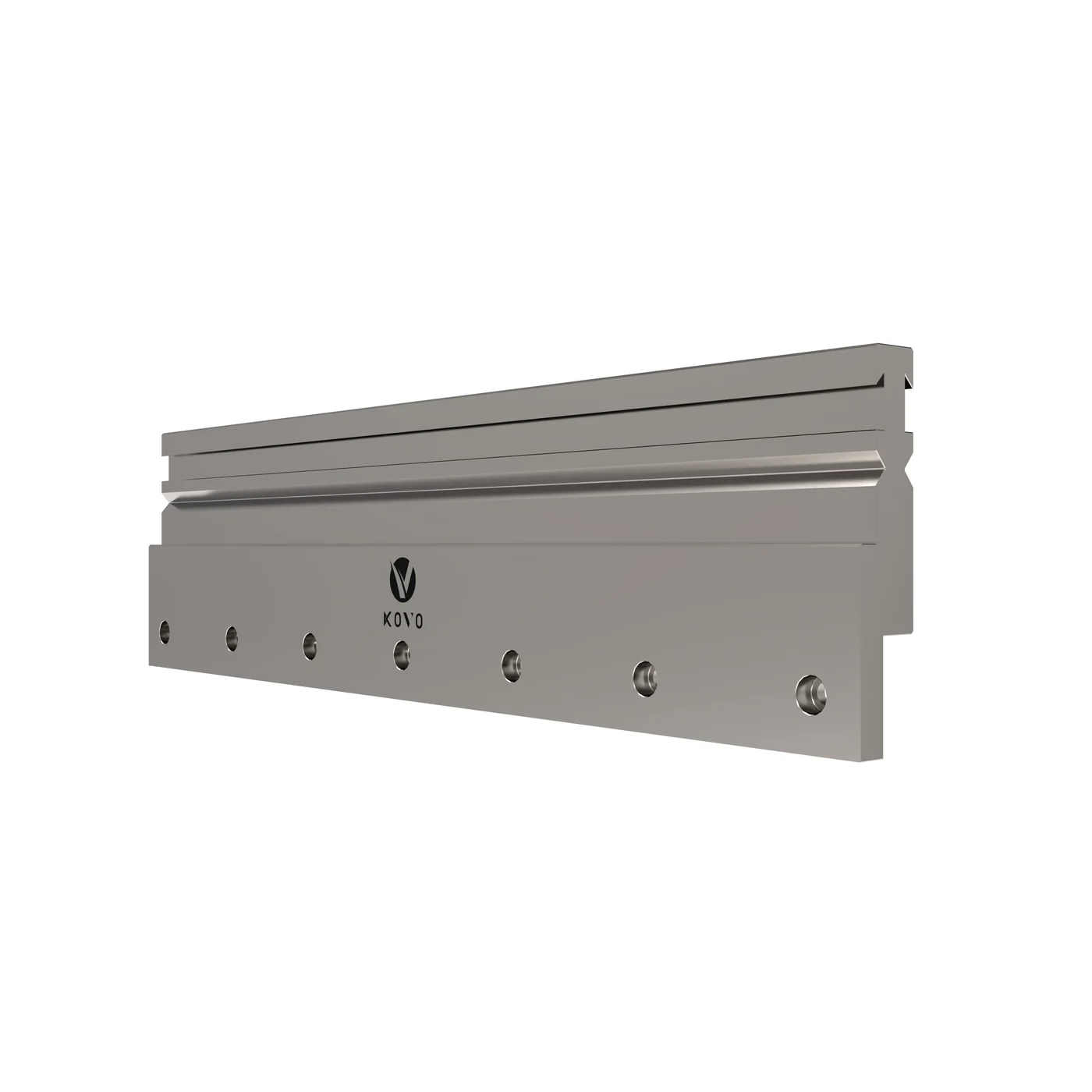

BYSTRONIC Blade Holder 14.282
BYSTRONIC Blade Holder 14.282 supports R 0.5 - 6.0 mm radius blades with 135 mm height and a maximum load of 1000 kN/m.
Model: 14.282
Product type: Adapter
Compatible tooling system: BYSTRONIC
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: 42 CrMo4
- Contact faces: Critical clamping and locating faces hardened for wear resistance
- Surface finish: Precision-ground machine and tooling interfaces
- Fit control: Interface, working height and parallelism checked as an assembly
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Blade Holder
- Tooling system: BYSTRONIC
- Material: 42 CrMo4
- Profile geometry: Radius range R 0.5 - 6.0 mm · Height 135 mm
- Published load: 1000 kN/m max.
Product specifications
- Tooling System
- BYSTRONIC
- Product Family
- Blade Holder
- Compatible System
- BYSTRONIC
- Radius Range
- R 0.5 - 6.0 mm
- Height
- 135 mm
- Load Capacity
- 1000 kN/m max.
- Material
- 42 CrMo4
ADAPTER LENGTHS & CONFIGURATION
Tool family: ADAPTERS.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
