COVO PRESS BRAKE TOOLING

Bystronic Die 14.912

COVO-System Bystronic compatible die tooling. Angle 24°. Radius R 0,6 mm. Height 195 mm. Load 800 kN/m max..

Model: 14.912

Product type: Die

Compatible tooling system: bystronic

Product specifications

Tooling system
COVO-System Bystronic
Angle
24°
Radius R
0,6 mm
Height
195 mm
Load
800 kN/m max.
Material
42 CrMo

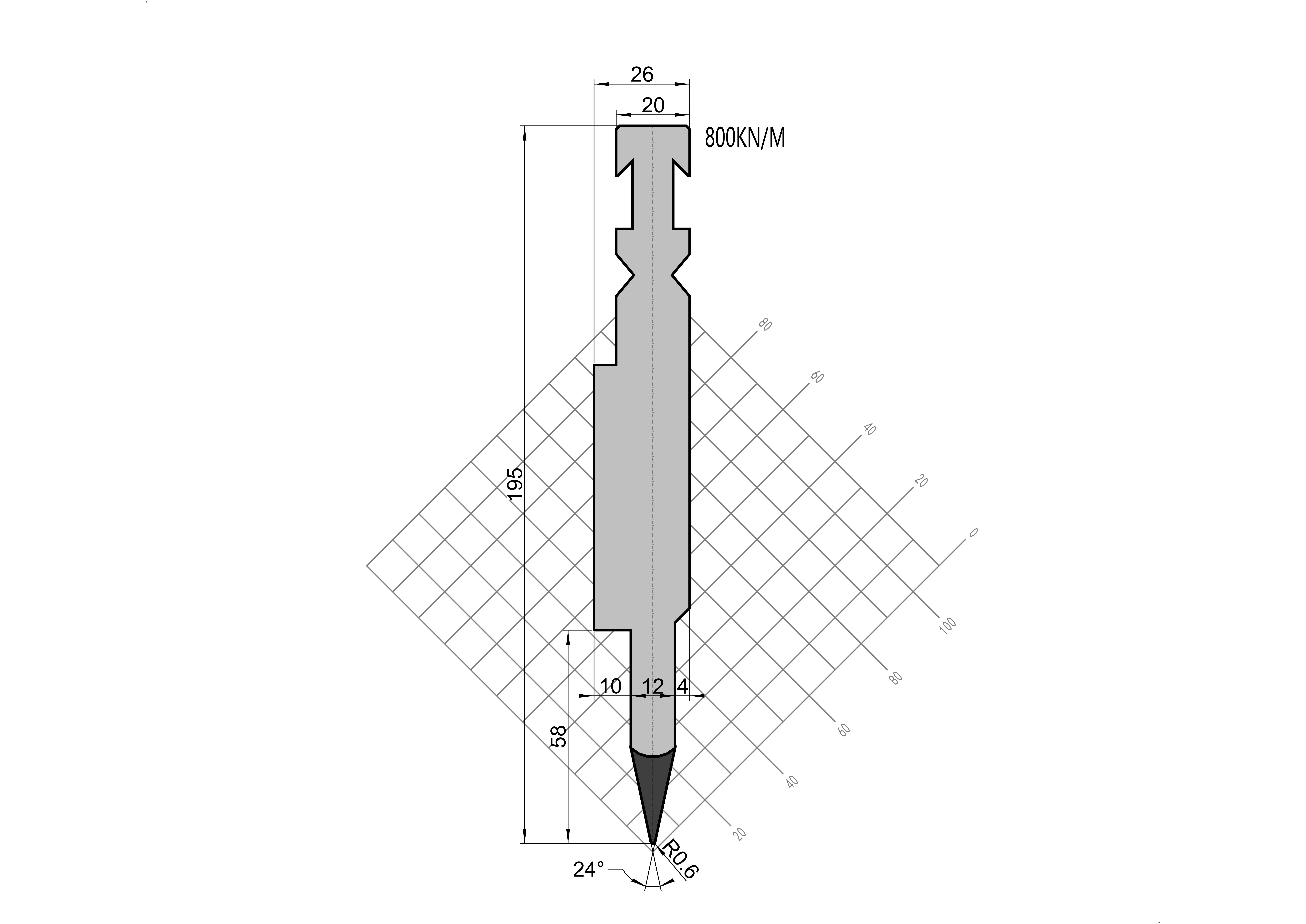

Bystronic Die 14.912 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
