COVO ADAPTER

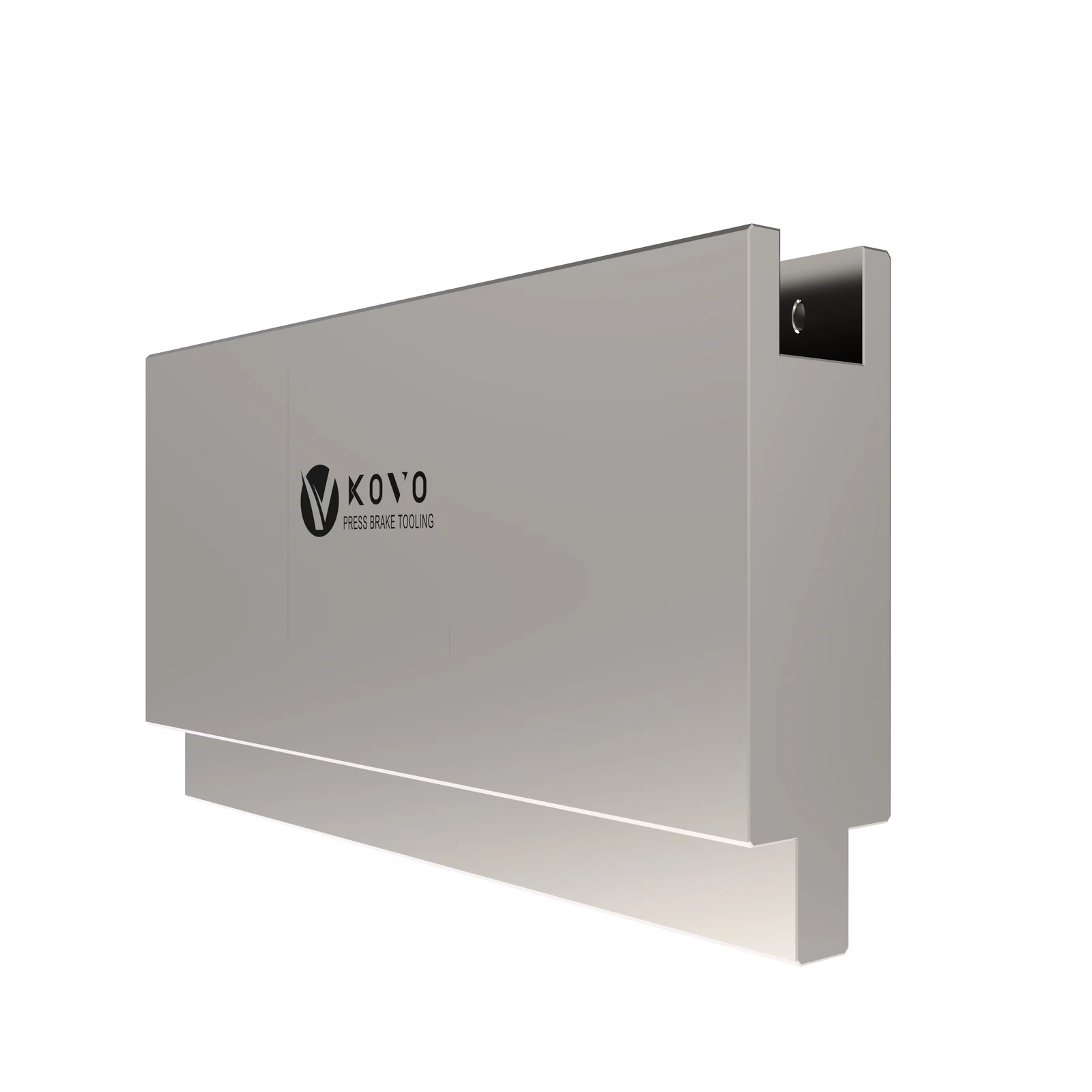

Composite Die Holder 26.005 - LVD
Composite Die Holder 26.005 - LVD is a LVD-compatible holder with 85 mm height and 200 kN/m max. load capacity.
Model: 26.005
Product type: Adapter
Compatible tooling system: Markfree Bending, LVD
Product Details
COVO manufacturing standards, product-specific technical data and available length configurations for this tooling profile.
Manufacturing standard
- Material & treatment: C45
- Contact faces: Critical clamping and locating faces hardened for wear resistance
- Surface finish: Precision-ground machine and tooling interfaces
- Fit control: Interface, working height and parallelism checked as an assembly
- Identification: Permanent model and traceability marking applied as specified
Product technical data
- Tool profile: Composite Die Holder
- Tooling range: Markfree Bending / LVD
- Material: C45
- Profile geometry: Height 85 mm
- Published load: 200 kN/m max.
Product specifications
- Tooling System
- Markfree Bending
- Product Family
- Composite Die Holder
- Compatible System
- Markfree Bending / LVD
- Height
- 85 mm
- Load Capacity
- 200 kN/m max.
- Material
- C45
ADAPTER LENGTHS & CONFIGURATION
Tool family: ADAPTERS.
Working length and any sectional layout are engineered from the machine, part profile and bending sequence.
- Working length: Made to order — Confirmed on the approved quotation or drawing
- Alternative length: Available on request — Reviewed for machine bed, handling and transport
Engineered to order
Diagram: Configuration schematic — not to scale.
Segment quantities, end pieces and any horn arrangement are confirmed from the bending sequence.
Selection and application review
Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
