COVO PRESS BRAKE TOOLING

LVD Punch 16.51

COVO LVD Punch LVD Punch 16.51 (model 16.51) for press brake tooling and sheet metal bending. Key specifications include Angle: 78°, Radius: R = 1 mm, Height...

Model: 16.51

Product type: Punch

Compatible tooling system: LVD

Product specifications

Tooling system
COVO-System LVD Type II
Angle
78°
Height
180 mm
Radius
R = 1 mm
Load
450 kN/m max.
Material
42 CrMo, tempered to 1100 - 1200 N/mm2

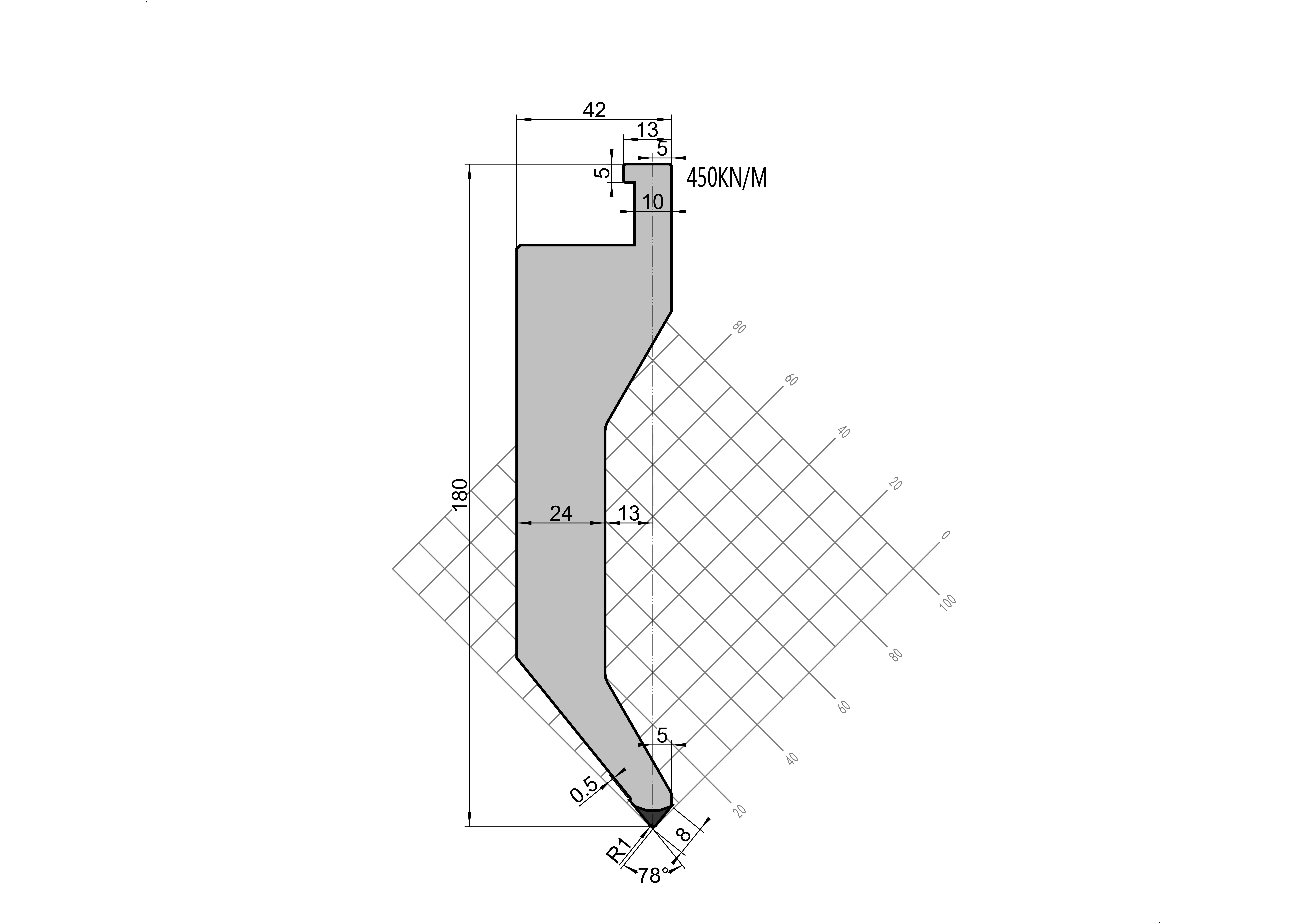

LVD Punch 16.51 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
