COVO PRESS BRAKE TOOLING

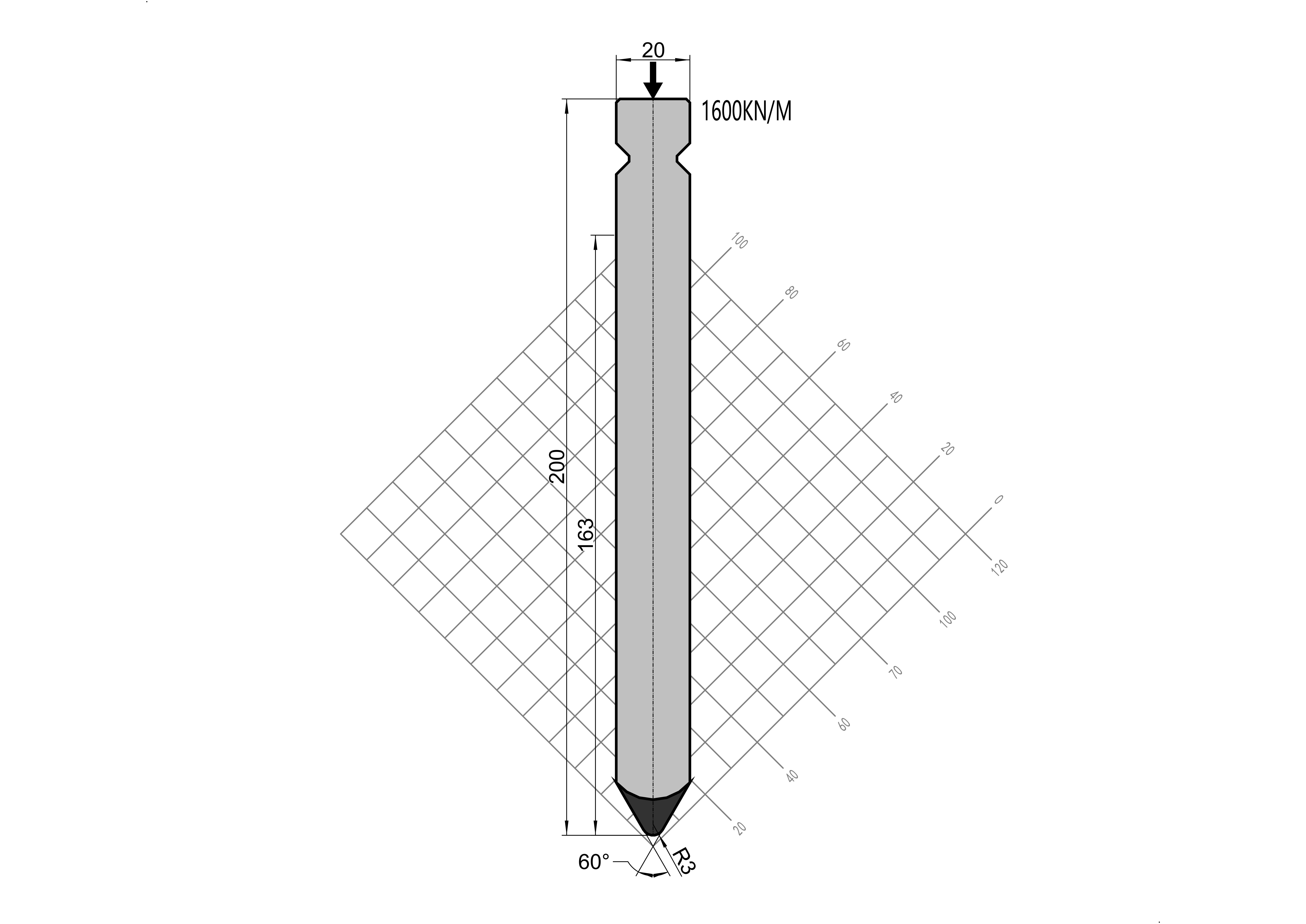

WILA Punch 19.024

Tooling system COVO-System Wila type I/Trumpf/LVD; Angle 60°; Radius R 3,0 mm; Height 163 mm; Load 1600 kN/m max.; Material 42 CrMo

Model: 19.024

Product type: Punch

Compatible tooling system: WILA

Product specifications

Tooling system
COVO-System Wila type I/Trumpf/LVD
Angle
60°
Radius
R 3,0 mm
Height
163 mm
Load
1600 kN/m max.
Material
42 CrMo
WILA Punch 19.024 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
