COVO PRESS BRAKE TOOLING

WILA Punch 19.041

Tooling system COVO-System Wila type I/Trumpf/LVD; Angle 80°; Radius R 6,0 mm; Height 200 mm; Load 1300 kN/m max.; Material 42 CrMo

Model: 19.041

Product type: Punch

Compatible tooling system: WILA

Product specifications

Tooling system
COVO-System Wila type I/Trumpf/LVD
Angle
80°
Radius
R 6,0 mm
Height
200 mm
Load
1300 kN/m max.
Material
42 CrMo

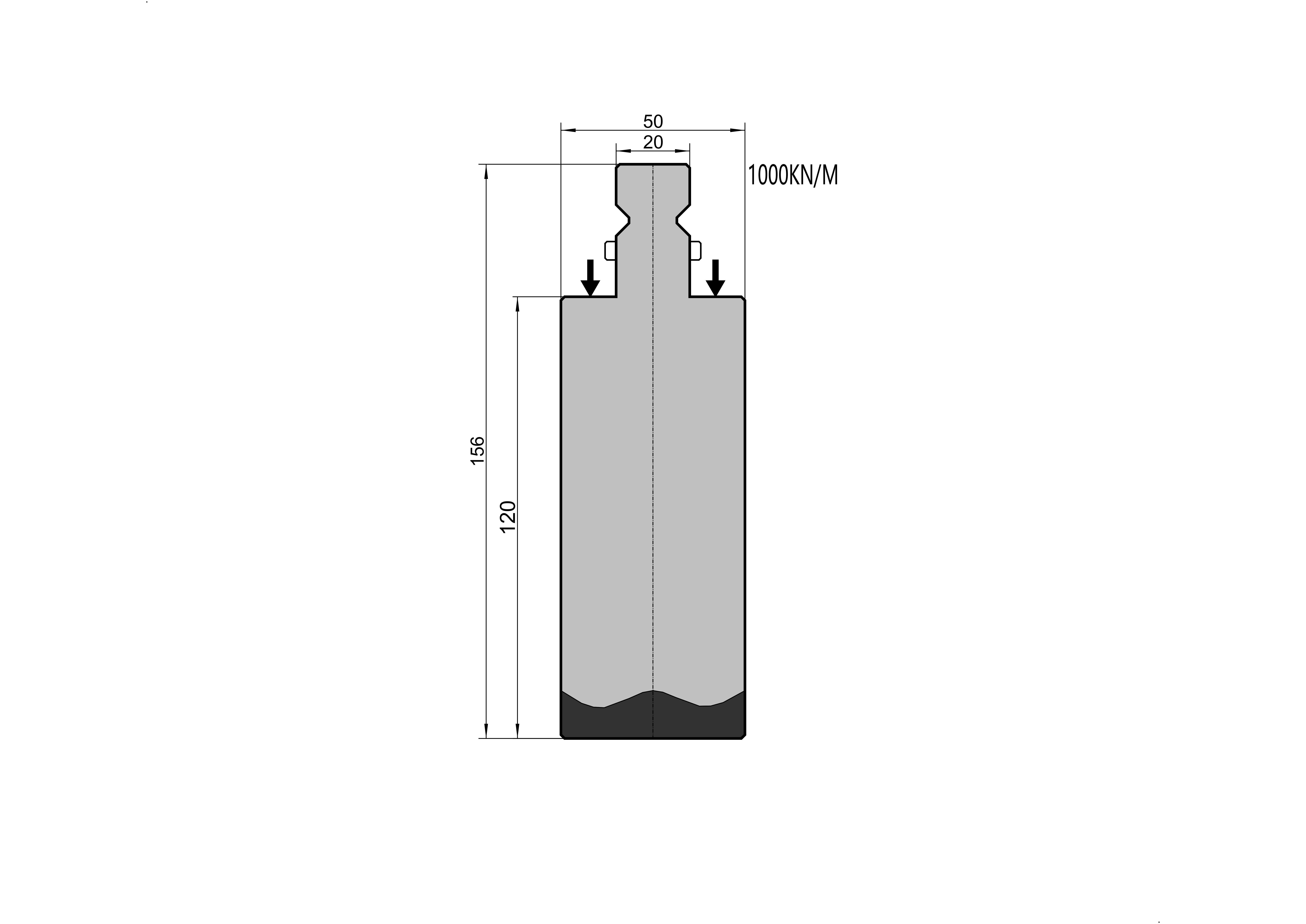

WILA Punch 19.041 press brake tooling

Selection and application review

Confirm the press brake clamping interface, material grade, sheet thickness, bend length and finished profile before ordering. COVO uses these production inputs to review tool compatibility, working height, clearance and the required punch-and-die combination.
