COVO · LVD · Punches

LVD Punch 16.81

Model: 16.81

Product Details

Manufacturing standard

Clamping interface

COVO · LVD · Punches · Clamping interface
This family includes different interfaces. The catalog view shown here belongs to the selected model; confirm the tang, seating face and holder against the machine drawing.

Your selected profile

Tooling system
COVO-System Trumpf/Wila/LVD
Angle
20°
Tip radius
R 1,0 mm
Height
169 mm
Catalog load
400 kN/m max.
Material
42CrMo
LVD Punch 16.81 · Your selected profile

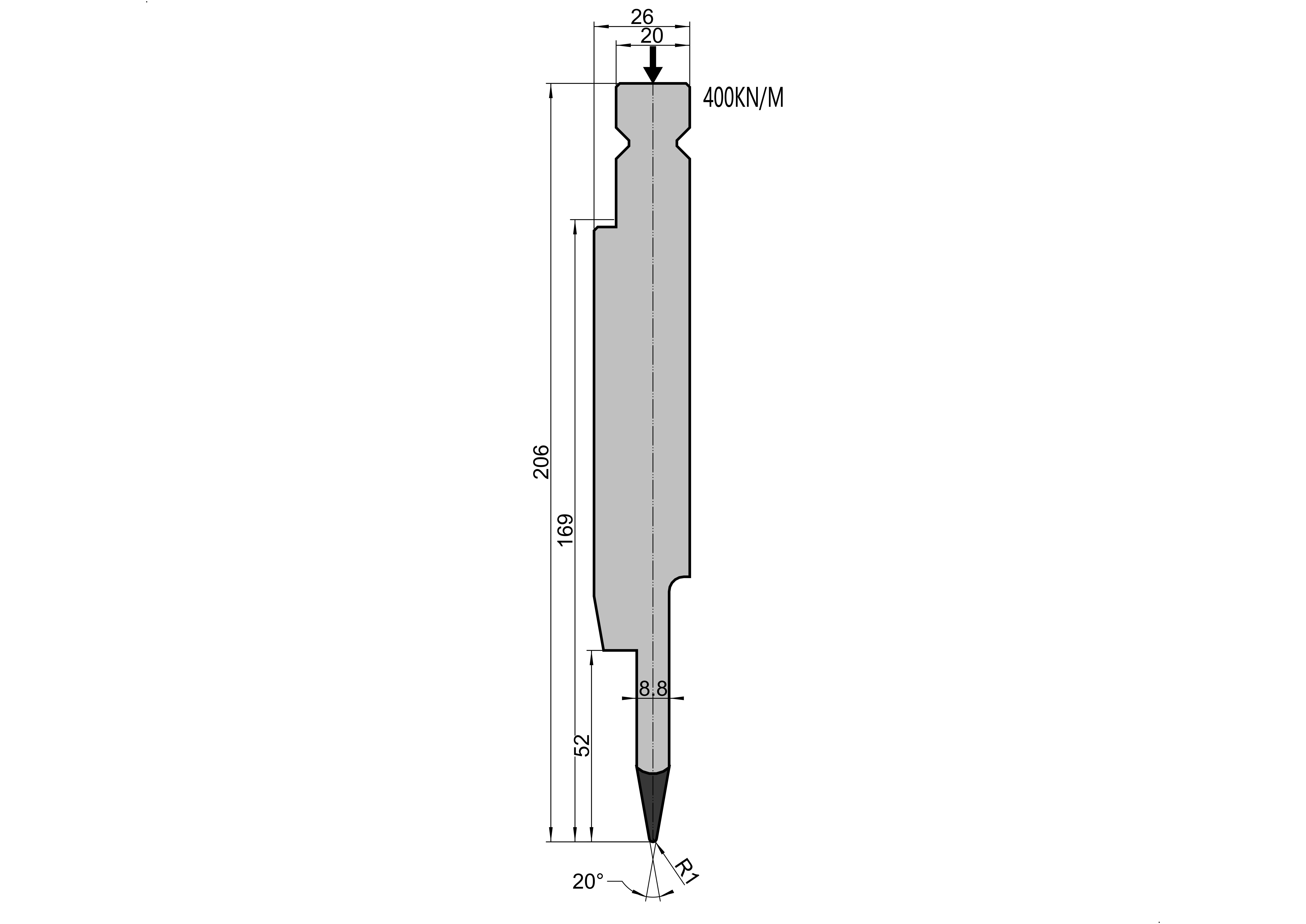

Catalog views for this model. Open the drawing to inspect the complete profile; use the approved drawing for final dimensions and allowable load.

Tool lengths & sectional configurations · Punches

Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.

One-piece tool

COVO · LVD · Punches · One-piece tool
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.

Short sections

COVO · LVD · Punches · Short sections
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.

Sectional configuration

Plan the working length, clearance and left/right end arrangement together. The illustrations explain the setup; they do not define the selected punch profile or segment list.

COVO · LVD · Punches · Sectional configuration
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.
