COVO · LVD · Dies
LVD Die 26.209
Model: 26.209
Product Details
Manufacturing standard
- Material: 42 CrMo
- Working radii: COVO HRC 58–60 process range where specified.
- Precision-ground working and locating surfaces.
- Matched locating faces for parallel installation and repeat setup.
- Model identification and traceability marking as specified.

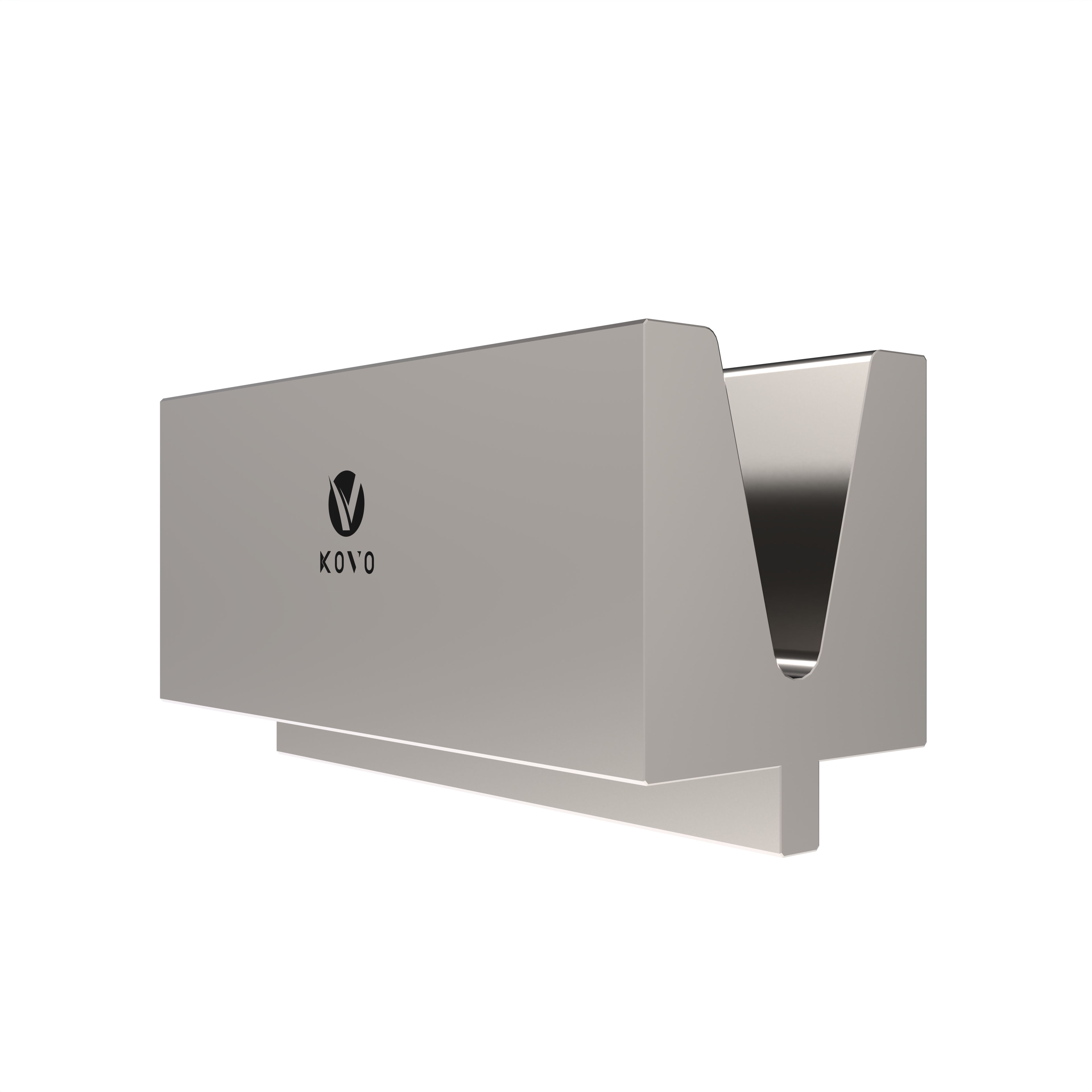

Clamping interface

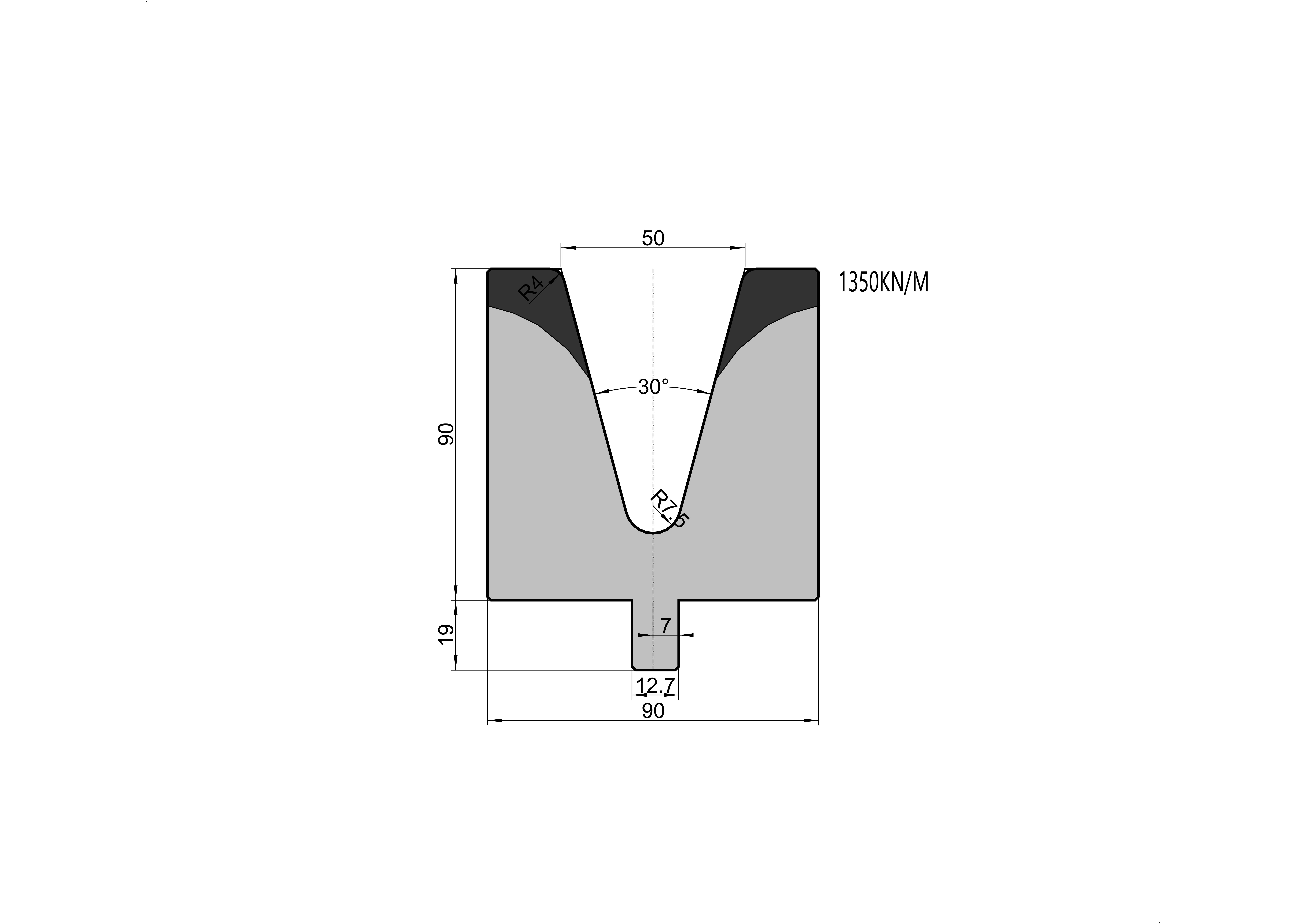

Your selected profile
- Tooling system
- COVO-System LVD
- Angle
- 30°
- Die Opening
- V = 50 mm
- Intake radius
- R = 4,0 mm
- Height
- 90 mm
- Catalog load
- 1350 kN/m max.
- Material
- 42 CrMo
Tool lengths & sectional configurations · Dies
Configuration illustrations, not the supply specification for this model. Working lengths, segment quantities and end details are confirmed on the COVO quotation and approved drawing. No stock availability is implied.
One-piece tool
Short sections
Sectional configuration
Select the working length with the V opening, shoulder radius and lower holder. Keep the lower die aligned with the upper tool; confirm the segment list as a matched setup.
Final configuration review
- Press brake brand and machine model
- Required working or bend length
- Material grade and sheet thickness
- Finished profile or part drawing
